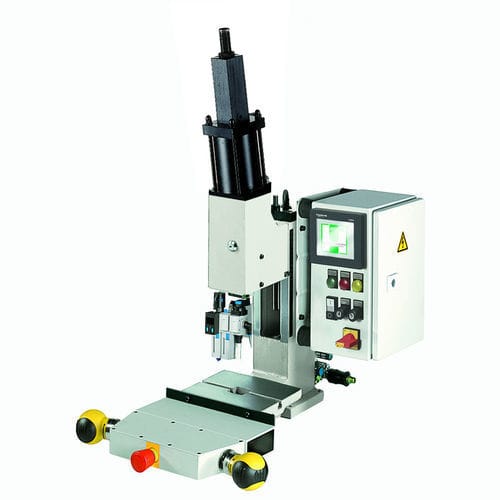

Pneumatic press 20 KHKP

togglehand-operated

Product overview

• Model designation: 20 kN KHKP
• Type: Pneumatic toggle press
• Operation: Manually

Dimension table
A2: 800
B: 580
C: 415
D: 200
E: 200
F: 120
G: 75
U: 21
V: Ø 10 H7
X: 60-225
X1: 0-60
Ymax: 890

Supplies / Base variants

• Standard press with enlarged installation height
• Standard press without accessories
• Standard press with enlarged throat

Accessories

• Clamping pin without collar
• Clamping pin with collar
• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Rotary table changing plate with bore only with RT.
• Two-hand safety control ZS08
• Two-hand safety control ES07
• SpiceFlex modular
• SE Series for simple two-hand safety control

Sliding table

• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Heavy-duty sliding table, mechanical with electro-pneumatic control

Unique to GECHTER
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.

Technical specifications

• Press type: Pneumatic toggle press
• Operation: Manually
• Overhang: 120 mm
• Installation height adjustable: 60 mm - 220 mm
• Stroke length: 0 mm - 60 mm
• Force generation: Pneumatic cylinder - Toggle lever
• Max. pressforce at lower dead center: 20 kN
• Operating pressure: 6 bar
• Location bore: Ø 10 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjusting spindle
• Fastening guide unit per screw: 90 Nm
• Connection hose: 1/4''
• Two-Hand safety control ES07: Optional
• Two-Hand safety control ZS08: Optional
• Two-Hand safety control Spice Flex: Optional
• Pressing force: 20kN
• Standard color: RAL 7035
• Weight: 43 kg
