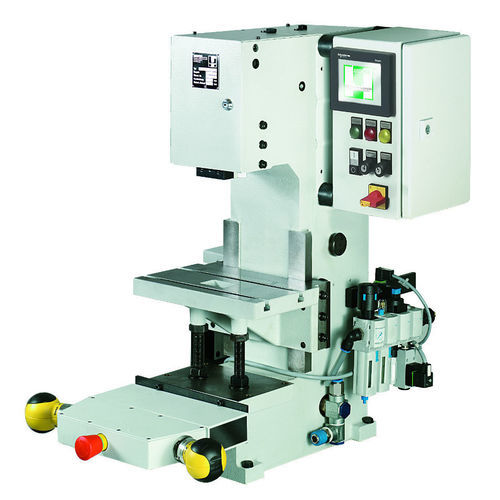

Pneumatic press 30 KHP

joiningassemblytoggle

Product name
Pneumatic toggle press KHP 30 kN

Overview
Industrial pneumatic toggle press for high-force precision pressing in assembly and joining operations. Adjustable installation height up to 250 mm and stroke range 5–40 mm. Overhang 120 mm. Force generated by a toggle lever with max. pressforce 30 kN at lower dead center. Twist-free prism guide with play-free adjustment and removable clamped piece for easy handling. Operating pressure 6 bar. Pneumatic connection hose 1/2''. Optional two-hand safety controls (ZS08, SpiceFlex). Standard color RAL 7035. Weight approx. 150 kg.

Dimension table
A2 : 760
B : 520
D : 300
E : 120
G : 70
U : 40
V : Ø 20 H7
Xmin : 120
Xmax : 250
X1 : 40
Y : 815

Accessories

• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• SpiceFlex modular
• Adjustable articulation piece, fine plunger adjustment
• SE Series for simple two-hand safety control
• Heavy-duty sliding table, mechanical (various variants)

Uniqueness
Play-free adjustable prism guide ensures precise guidance. The clamped piece can be removed forwards without damaging the clamping pin, enabling safe and fast tooling changes.

Technical specifications

• Press type: Pneumatic toggle press
• Operation: Control (optional)
• Overhang: 120 mm
• Installation height adjustable: Max. 250 mm
• Stroke length: 5 mm - 40 mm
• Force generation: Toggle lever
• Max. pressforce at lower dead center: 30 kN
• Operating pressure: 6 bar
• Location bore: Ø 20 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Connection hose: 1/2''
• Two-Hand safety control ZS08: Optional
• Two-Hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 150 kg
