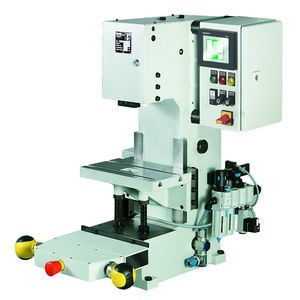

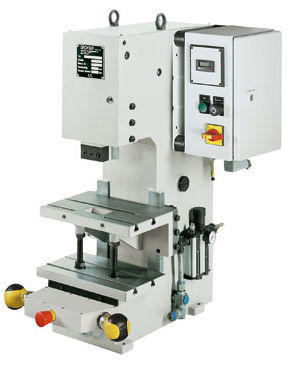

Pneumatic press 20 kN KHP

togglewith pedal control

Product overview
Pneumatic toggle press designed for high-force precision pressing. Key functional data available on this page are presented below including dimensional references, available accessories and unique features.

Dimensions (table)
A2: 760
B: 520
D: 300
E: 120
G: 70
U: 0-40
V: Ø 20 H7
Xmin: 120
Xmax: 250
X1: 0-40
Y: 815

Accessories

• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• SpiceFlex modular
• Adjustable articulation piece, fine plunger adjustment
• SE Series for simple two-hand safety control
• High-load sliding table, mechanical
• High-load sliding table, mechanical with locking pin
• High-load sliding table, mechanical with electro-pneumatic actuation

Unique
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.

Characteristics / technical specifications

• Press type: Pneumatic toggle press
• Operation: Control (optional)
• Overhang: 120 mm
• Installation height adjustable: Max. 250 mm
• Stroke length: 5 mm - 40 mm
• Force generation: Toggle lever
• Max. pressforce at lower dead center: 20 kN
• Operating pressure: 6 bar
• Location bore: Ø 20 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Connection hose: 1/2''
• Two-Hand safety control ES06: Optional
• Two-Hand safety control ZS06: Optional
• Two-Hand safety control ZS08: Optional
• Two-Hand safety control Spice Flex: Optional
• Pressing force at lower dead center: 30 kN
• Standard color: RAL 7035
• Weight: 150 kg
