Pneumatic press 70 KHP

togglewith pedal control

Product overview

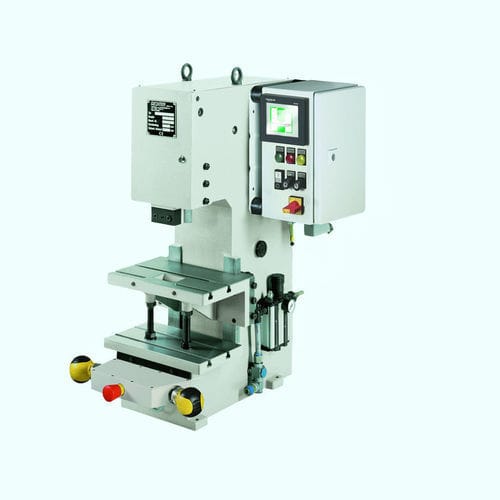

Pneumatic knee-lever press, model KHP, providing a maximum press force of 70 kN. Stroke adjustable from 5 mm to 62 mm. Installation height adjustable up to 295 mm. Operating pressure 6 bar. Overhang (E): 160 mm. Standard colour RAL 7035. Weight: 354 kg.

Dimensions
A2: 1010
B: 450
D: 360
E: 160
G: 71
U: 44
V: Ø 25 H7
Xmin: 160
Xmax: 295
X1: 0-62
Y: 1001

Accessories

• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• SpiceFlex modular
• Adjustable articulation piece, fine plunger adjustment
• SE Series for simple two-hand safety control
• Clamping pin without collar
• Clamping pin with collar
• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control

Sliding table options

• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Heavy-duty sliding table, mechanical with electro-pneumatic control

Key features
Play-free adjustable prism guide. Removable clamped piece accessible from the front. Clamping pin design prevents damage to the pin.

Technical specifications

• Press type: Pneumatic knee-lever press
• Operation: Control (optional)
• Overhang (E): 160 mm
• Installation height adjustable: Max. 295 mm
• Stroke length: 5 mm - 62 mm
• Force generation: Toggle lever
• Max. pressforce at lower dead center: 70 kN
• Operating pressure: 6 bar
• Location bore: Ø 25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Connection hose: 1/2''
• Two-hand safety control ZS08: Optional
• Two-hand safety control SpiceFlex: Optional
• Standard color: RAL 7035
• Weight: 354 kg
