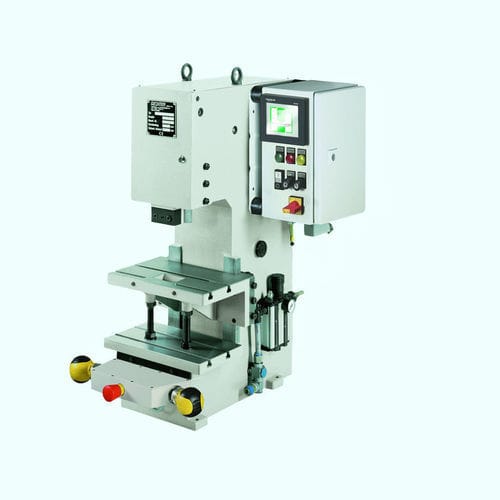

Pneumatic press 50 KHP

stampingtogglewith pedal control

Product overview
The KHP 50 kN is a pneumatic toggle press engineered for high-force, precision pressing operations in industrial production. It uses a toggle lever force generation and can be integrated with optional control and safety systems. The product page includes dimensional drawings, full technical specifications, optional safety controls and a range of accessories suitable for automated or manual workflows.

Dimension table
A2: 1010
B: 540
D: 360
E: 160
G: 71
U: 44
V: Ø 25 H7
Xmin: 160
Xmax: 295
X1: 0-62
Y: 1001

Accessories

• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• SpiceFlex modular
• Adjustable articulation piece, fine plunger adjustment
• SE Series for simple two-hand safety control
• Clamping pin without collar
• Clamping pin with collar
• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Heavy-duty sliding table, mechanical with electro-pneumatic control

Unique
Play-free adjustable prism guide exclusive to GECHTER. The clamped piece can be removed forward without damaging the clamping pin. Includes 2x DIN 650 M10x12 fixing provisions.

Characteristics / technical specifications

• Press type: Pneumatic toggle press
• Operation: Control (optional)
• Overhang: 160 mm
• Installation height adjustable: Max. 295 mm
• Stroke length: 5 mm - 62 mm
• Force generation: Toggle lever
• Max. pressforce at lower dead center: 50 kN
• Operating pressure: 6 bar
• Location bore: Ø 25 H7
• Clamped piece: Removable clamped piece
• Direction type: Prism guide
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Connection hose: 1/2''
• Two-Hand safety control ES06: Optional
• Two-Hand safety control ZS06: Optional
• Two-Hand safety control ZS08: Optional
• Two-Hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 354 kg
