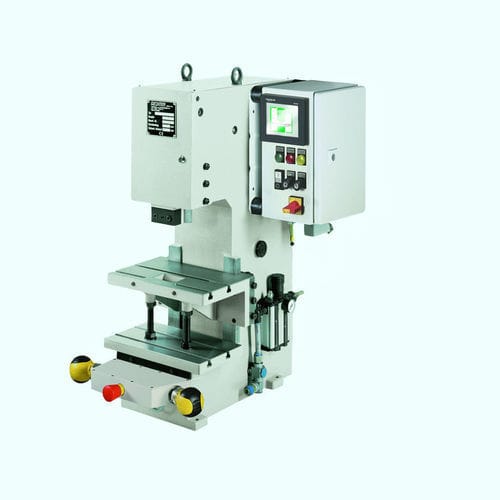

Pneumatic press 100 KHP

C-frametogglewith movable table

Dimension table
A2: 1010
B: 540
D: 360
E: 160
G: 71
U: 44
V: Ø 25 H7
Xmin: 140
Xmax: 275
X1: 0-40
Y: 1001

Specs

• Press type: C-stand with adjustable table
• Operation: Control (optional)
• Overhang: 160 mm
• Installation height adjustable: Max. 275 mm
• Stroke length: 5 mm - 40 mm
• Force generation: Toggle lever
• Max. pressforce at lower dead center: 100 kN
• Operating pressure: 6 bar
• Location bore: Ø 25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Connection hose: 1/2''
• Two-Hand safety control ES06: Optional
• Two-Hand safety control ZS06: Optional
• Two-Hand safety control ZS08: Optional
• Two-Hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 354 kg

Accessories

• Clamping pin without collar
• Clamping pin with collar
• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• SpiceFlex modular
• Adjustable articulation piece, fine plunger adjustment
• SE Series for simple two-hand safety control

Sliding table

• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Heavy-duty sliding table, mechanical with electro-pneumatic control

Unique
Unique to GECHTER: Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.

caractéristiques / spécifications techniques

• Model series: KHP
• Max. press force: 100 kN
• Operating pressure: 6 bar
• Stroke length: 5 mm - 40 mm
• Overhang: 160 mm
• Installation height adjustable: Max. 275 mm
• Location bore: Ø 25 H7
• Connection hose: 1/2''
• Weight: 354 kg
• Press type: C-stand with adjustable table
• Force generation: Toggle lever
• Clamped piece: Removable clamped piece
• Guide: Prism guide, play-free adjustable by adjustment gib
• Standard color: RAL 7035
• Two-hand safety controls: ES06 / ZS06 / ZS08 / SpiceFlex (optional)
