Hydro-pneumatic press 110 HPC

C-frame

Overview

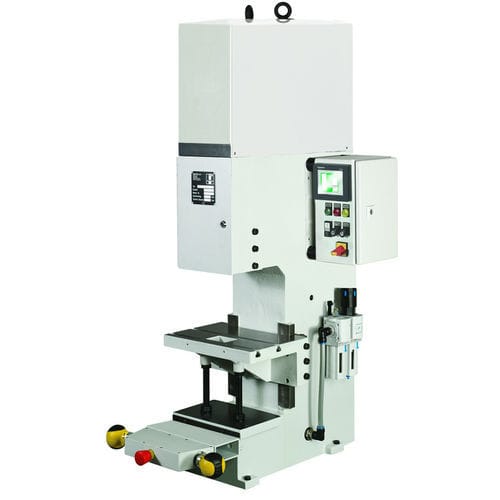

Hydropneumatic C-frame press from the HPC series for precise, high-force pressing operations. Compact C-frame design with adjustable installation height, selectable stroke and power-stroke variants, and optional control and safety equipment.

Dimension table
A2: 1010
B: 540
D: 360
E: 160
G: 71
Xmax: 295
Y: 1420

Supplies / Base

• X1 = 50 mm stroke with 6 mm power stroke
• X1 = 100 mm stroke with 6 mm power stroke
• X1 = 50 mm stroke with 12 mm power stroke
• X1 = 100 mm stroke with 12 mm power stroke, custom stroke length on request

Accessories

• Clamping pin without collar
• Clamping pin with collar
• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Rotary table changing plate with bore (only with RT)
• Two-hand safety control ZS08
• SpiceFlex modular

Sliding table

• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Heavy-duty sliding table, mechanical with electro-pneumatic control

Technical specifications

• Model series: HPC
• Press type: C-stand with adjustable table
• Operation: Control (optional)
• Overhang: 160 mm
• Installation height adjustable: Max. 295 mm
• Stroke / power stroke: 50 mm / 6 mm (other variants available)
• Pressing force (power stroke): 110 kN
• Pressing force (approach): 8.4 kN
• Pull-out force (return stroke): 6.7 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Location bore: Ø 25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Connection hose: 1/2''
• Two-hand safety control ZS08: Optional
• Two-hand safety control SpiceFlex: Optional
• Standard color: RAL 7035
• Weight: 320 kg
