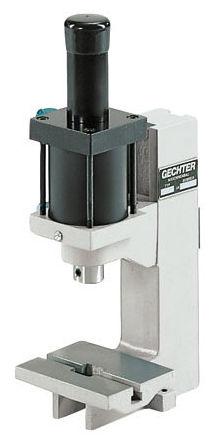

Pneumatic press 2 LP

with lever control

Overview
The LP series features very low air consumption due to special multi-chamber cylinders and is supplied as standard with a continuously adjustable 40 mm stroke. Press force: 2 kN at nominal operating pressure.

Dimensions
C: 260
D: 120
E: 70
F: 55
G: 39
U: 22
V: Ø 10 H7
X: 83-180
X1: 0-40
Ymax: 497

Key features
Play-free adjustable prism guide. Front clamping piece removable; clamping pin is not damaged during removal.

Accessories

• Standard press stroke 40 mm

Technical specifications

• Press type: Pneumatic knee-lever press
• Actuation: With control (optional)
• Reach (overhang): 70 mm
• Installation height adjustable: 83 mm - 180 mm
• Stroke length: 0 mm - 40 mm
• Press force / reference pressure: 2 kN / 6 bar
• Force generation: Pneumatic cylinder
• Operating pressure: 3 - 7 bar
• Mounting bore: Ø 10 H7
• Tool clamping: Setscrew
• Torsion-proof guide: Torsion-proof with play ± 0.2 mm
• Guide height adjustment: Manual
• Fastening torque per guide screw: 70 Nm
• Pneumatic connection line: 1/4''
• Two-hand safety control ES06: Optional
• Two-hand safety control ZS06: Optional
• Two-hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 8 kg
