Manual press 4 HZP

rack-and-pinionhand-operatedwith lever control

Overview

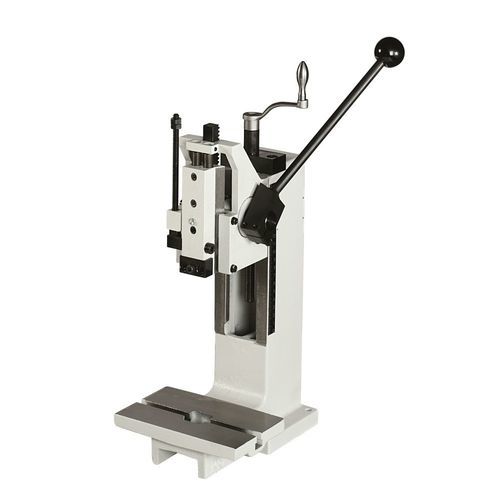

Manual rack and pinion press model 4 HZP for precise pressing operations. Operation: manual.

Dimensions (table)

• A2: 243 mm
• B: 140 mm
• C: 344 mm
• D: 180 mm
• E: 90 mm
• F: 60 mm
• G: 50 mm
• U: 21 mm
• V: Ø 10 H7
• X: 70-200 mm
• X1: 0-100 mm
• Y: 465-600 mm
• Weight: 19 kg

Accessories / Supplies

• Standard press without accessories
• Standard press with enlarged throat
• Standard press with enlarged installation height

Accessories

• Clamping pin with collar
• Mechanical return stroke
• Precision depth adjustment PTE (adapter)
• Centering plate with middle bore
• Ergonomic handle
• Clamping pin without collar

Sliding table

• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt

Unique features

• Play-free adjustable prism guide allowing forward removal of the clamped piece without damaging the clamping pin
• T-Nut 1 x DIN 650 M8x10

Downloads (available file names on page)

• HZP 04 Hub100 G0300 ANR18811.zip
• HZP 04 Hub100 G0301 ANR24793.zip
• HZP 04 Hub100 G0302 ANR24796.zip
• PEH HZP 04 Hub100 G0300 ANR22740.zip (in folder Presseinheit)

Characteristics / technical specifications

• Press type: Rack and pinion presses
• Operation: Manually
• Overhang: 90 mm
• Installation height adjustable: 70 mm - 200 mm
• Stroke adjustable: 100 mm
• Max. press force at lower dead center: 2.5 kN
• Lever operating force, allowed maximum: 350 N
• Location bore: Ø 10 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Hand lever position: Right 360° adjustable
• Height adjustment guide unit: Hand crank
• Fastening guide unit per screw: 60 Nm
• Standard color: RAL 7035
• Weight: 19 kg
