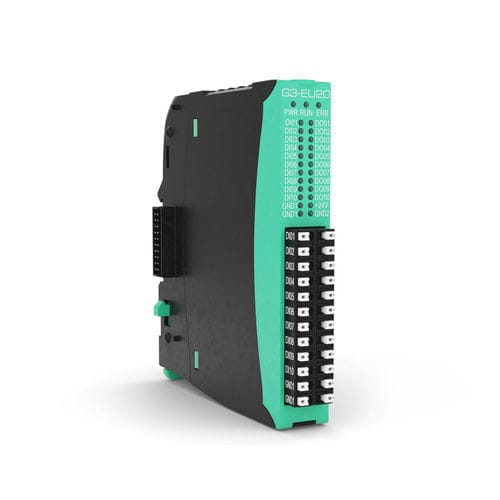

Digital I/O module G3-EU20

EtherCAT10-Imulti-channel

The G3-U20 module has 10 digital input 24Vdc and 10 optically isolated, current-source digital outputs at 24 Vdc max 0.5A for channel. Can be directly power loads in VdcC within the limits of rated currents, or control loads of any kind via solid state relay, contactors. Digital input 9 and 10 can be configured as frequency signal reading G3-EU20 can be connected with all the G-Mation gateways and CPU’s from which it receives power supply. Each output is protected against short-circuit, overload and overheating. There is an Internal demagnetization circuit for inductive loads. Optically isolated digital outputs 24Vdc ± 25% Maximum current per channel 0,5 A Power supply 24Vdc ± 25% Channels 9-10 configurable as frequency input (max 1,5kHz) Revers polarity protection Diagnostics: Status LED for each output Power supply detection LED Ethercat protocol status LED
