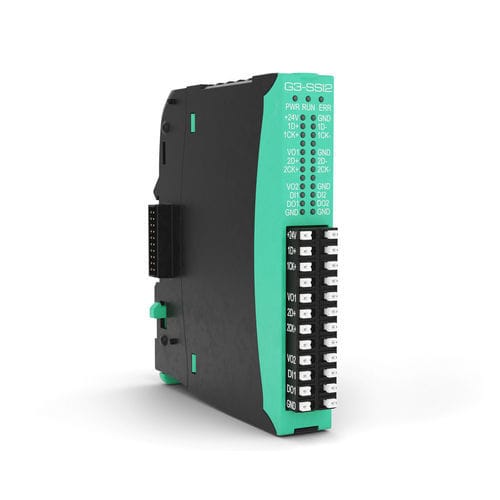

Digital input module G3-SSI2

EtherCAT2 digital inputsDIN rail

The G3-SSI2 module handles 2 fully configurable SSI inputs for reading signals with 24, 25 or 32 bit data format, binary or gray coding, output clock frequency from 10kHz to 2MHz. As fast counting events, 2 digital 24Vdc outputs are available directly on the board. The module provides diagnostics in case of external power failure and interrupted sensor connection. The minimum sampling time for 2 channels is 30µs depending on the configured clock type and the number of transmitted bits. G3-SSI2 can be used with all the G-Mation gateways and CPU’s from which it receives power supply. data transmission 24, 25 or 32 bit frequency clock output from 10kHz to 2MHz data encoding input binary or gray Sampling time >30µs for 2 channel Power supply 24Vdc, 500mA Diagnostics: Power supply detection LED
