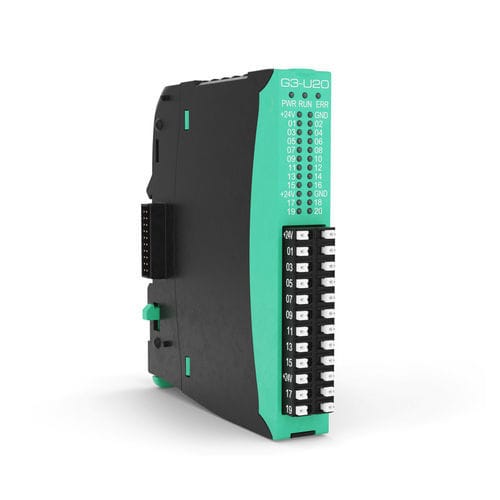

Digital input module G3-U20EtherCATwith relay outputDIN rail
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- EtherCAT
- Number of inputs/outputs
- with relay output
- Mounting
- DIN rail
Description
The G3-U20 module has 20 optically isolated, current-source digital outputs at 24 VDC± 25%, 0,5A/2A max directly power loads in VDC within the limits of rated currents, or control loads of any kind via solid state relay, contactors.
G3-U20 can be connected with all the G-Mation gateways and CPU’s from which it receives power supply.
The outputs are divided into 2 groups of 16 and 4 outputs, with maximum current of 8A per group.
Each output is protected against short-circuit, overload and overheating.
There is an Internal demagnetization circuit for inductive loads
Optically isolated digital outputs 24VDC ± 25%
Maximum current per channel 0,5 A (ch1..16) and 2A (ch17..20)
Maximum voltage of power supply 32Vdc
Isolation > 1.5kV
Diagnostics:
– Status LED for each output
– Power supply detection LED
