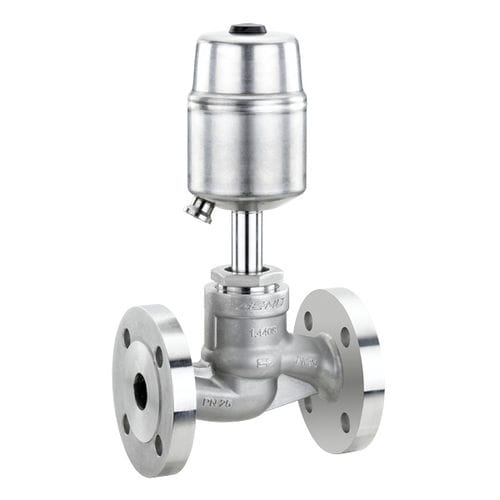

Globe valve 530

pneumaticcontrolshut-off

The GEMÜ 530 2/2-way globe valve has a rugged low maintenance stainless steel piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. Available as shut-off or control valve Stainless steel actuator resistant to corrosive ambient conditions Optionally with rapid venting valve for preventing the penetration of ambient media Faster actuator replacement and easily rotatable due to fixing via union nut Suitable for vacuum up to 20 mbar (a) Connection types: Flange Connection standards: ANSI | ASME | EN | ISO | JIS Body materials: 1.4408, cast stainless steel material | EN-GJS-400-18-LT, SG iron material Seat seal materials: PTFE | PTFE, reinforced Conformities: ATEX | CRN | EAC | FDA | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | SIL
