Globe valve 549

electricfor controlflange

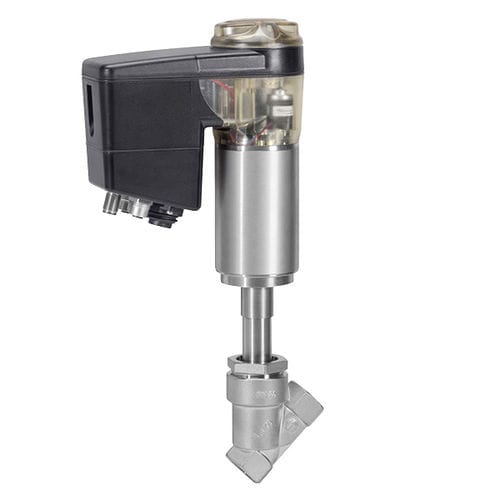

The GEMÜ 549 motorized 2/2-way angle seat globe valve with a hollow shaft electric actuator. The eSyDrive hollow shaft actuator can be operated as ON/OFF or with integrated positioner or process controller. The valve spindle is sealed by a self-adjusting gland packing providing low maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. An integral optical and electrical position indicator is standard. CIP/SIP capable Linear or modified equal-percentage control characteristics Open/close function, positioner and process controller Force and speed are variably adjustable Actuating speed max. 6 mm/s Extensive diagnostic functions Operable via web interface eSy-Web or Modbus TCP On-site or remote end position programming via programming input Various functions integrated (e.g. feedback, stroke limiter, etc.) Body configurations: 2/2-way body | Angle valve body Connection types: Clamp | Flange | Spigot | Threaded connection Connection standards: ANSI | ASME | BS | DIN | EN | ISO | NPT | SMS Body materials: 1.4408, investment casting material | 1.4435 (316L), forged material | 1.4435, investment casting material Seat seal materials: 1.4404 | PTFE | PTFE, reinforced Supply voltage: 24 V DC Actuating speed: max. 6 mm/s Protection class: IP 65, IP 61 Conformities: EAC | FDA | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004
