CategoryEmergency-stops
SeriesSHORTRON®-M12
Panel cut-outØ 22.3 mm
Degree of protectionIP65 / IP67 (in the front); IP65 (on the rear)
Illuminationno
With labelling optionno
Contact equipment2 NC
Connection typeM12 connector with PUR cable, A coded; wires 0,34mm² (AWG22)
Front bezelyellow
mushroom headred
Storage temperature-40°C ... 80°C
Mechanical life50,000 switching cycles
Shaperound
Positive openingacc. to EN60947-5-1,appendix K
Operating temperature-25°C ... 70°C
Electrical life50,000 switching cycles at rated load
Foolproofyes
Anti-lock collarno
Switching position indicatoryes
Releasetwist right or left
Contact materialAgNi
NormsEN 60947-5-1, EN 60947-5-5, EN ISO 13850

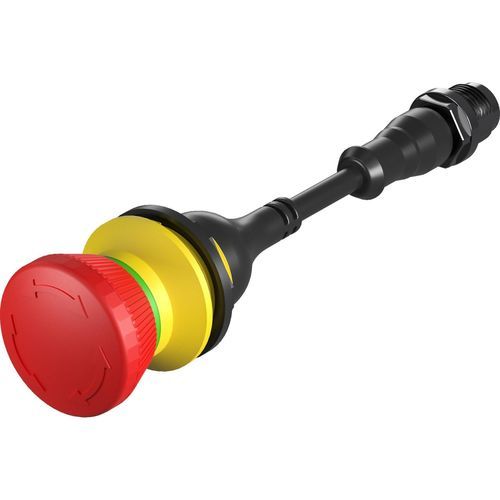

4-pole M12 connector, A-coded with 25 cm PUR cable - 2 NC - foolproof - switching position indicator - twist to release
