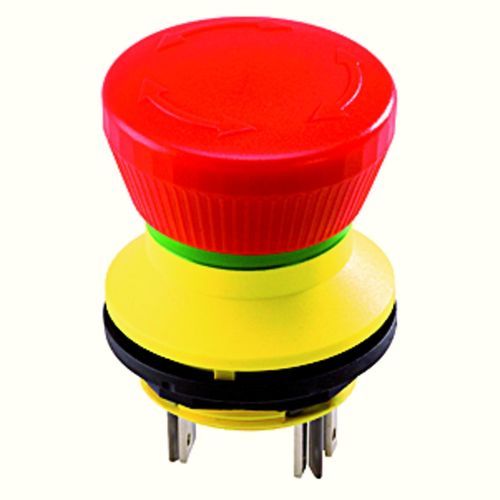

Emergency stop push-button switch SHORTRON® FRVKOOIP65IP672 NC
Add to favorites
Compare this product
Characteristics
- Type
- emergency stop
- Protection level
- IP65, IP67
- Contact configuration
- 2 NC
- Other characteristics
- DC, AC, non-illuminated, round
Description
Colour actuator
red
Operating temperature
-25 ... 70°C
Approvals
TÜV_Süd , CCC , cURus , CE , UKCA
Rated insulation voltage IEC/EN 60947-5-1
250 V DC
250 V AC
Storage temperature
-40 ... 80°C
Release
Twist to release left/right
Anti-lock collar
No
Electrical life
50.000 switching cycles
Mechanical life
50.000 switching cycles
Mounting aperture
Ø 22,3mm
Front bezel colour
yellow
Rated operating voltage
250 V DC
24 V DC
125 V DC
240 V AC
60 V DC
120 V AC
Rated operating current
0,55 A DC
0,27 A DC
1,5 A AC
3 A AC
2 A DC
1 A DC
Catalogs
No catalogs are available for this product.
