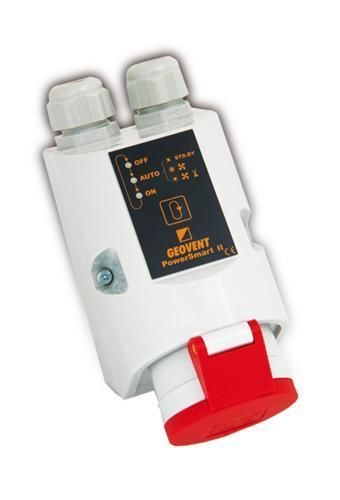

HVAC system controller PowerSmart

Summary
PowerSmart II/III is a demand-controlled ventilation controller that detects when connected equipment (for example welding machines) is active and triggers fan and damper operation only as needed. The unit uses a self-adjusting active flux sensor for reliable triggering in noisy industrial environments and includes relay outputs plus a built-in 24V transformer.

What do you get?

• Fan and damper activation only when machines are in use, enabling demand-driven ventilation.
• Self-adjusting, noise-resistant sensor for precise detection in industrial settings.
• Lower energy consumption by operating ventilation based on actual demand.
• Three power connection options: CEE 16A, 32A and 63A to suit different installations.
• Two integrated relay outputs for connection and control of multiple devices or systems.
• Direct connectivity to other equipment for straightforward system integration.
• Fast installation and calibration (calibration possible using two button presses) to reduce commissioning time.

Product information
PowerSmart II/III automatically activates ventilation when connected equipment is powered, ensuring the ventilation system runs only when required. The self-adjusting active flux sensor minimises false triggers from electrical noise, making the controller suitable for welding and other electrically noisy processes. Built-in 24V transformer and dual relay outputs simplify integration with fans, dampers and external control systems. Sensitivity and after-run time are configurable to match operational needs. By matching ventilation to real-time demand, the system contributes to lower operating costs and improved workplace airflow control.

Technical data
Voltage: 3×400 V / 50-60 Hz
3×230 V / 50-60 Hz
Current: CEE: 16 A, 32 A, 63 A
Outputs: Relay: 24VAC – max 1,5A

Technical specifications

• Voltage: 3×400 V / 50-60 Hz and 3×230 V / 50-60 Hz
• Current options: CEE 16 A, 32 A, 63 A
• Outputs: Relay 24VAC – max 1,5A
• Sensor: Self-adjusting active flux sensor (noise-resistant)
• Transformer: Built-in 24V transformer
• Relay outputs: Two integrated relay outputs for connection to multiple systems
• Installation: Quick calibration (two-button procedure)
• Adjustments: Sensitivity and after-run time configurable
• Use case: Designed for demand-controlled ventilation with welding and other industrial equipment
