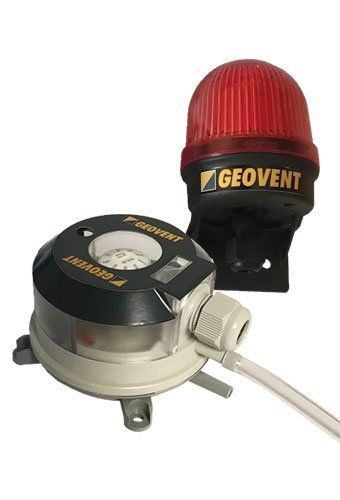

HVAC pressure controller GeoGuardlow-pressureadjustabledifferential
Add to favorites
Compare this product
Characteristics
- Applications
- HVAC
- Other characteristics
- low-pressure, adjustable, differential, transmitting
- Pressure
Max.: 500 Pa
(0.07 psi, 0.36 psi, 0.73 psi)Min.: 50 Pa
(0.01 psi, 0.07 psi, 0.15 psi)
Description
Overview
GeoGuard is a configurable pressure guard system for ventilation and extraction installations. Delivered as selectable sets, it monitors static or differential pressure and activates visual and audible alarms when measured values exceed configured upper or lower thresholds. GeoGuard is intended to support compliance with ventilation safety requirements.
Key features
How it works
GeoGuard measures ventilation pressure via a pressure switch connected by a pressure hose. When measured pressure falls outside the configured range, the system sends outputs to the warning light and siren to alert staff and allow corrective action. Sets are shipped configurable so integrators can select the appropriate range and alarm configuration for the installation.
Applications
Suitable for process extraction and general ventilation systems where maintaining correct pressure is required for workplace safety and regulatory compliance. Typical use cases include workshops, welding fume extraction, industrial ventilation and controlled-extraction processes.
Technical data
Voltage: 1×230 V / 50 Hz
Pressure ranges: 50–500 Pa; 500–2500 Pa; 1000–5000 Pa
Technical specifications
GeoGuard is a configurable pressure guard system for ventilation and extraction installations. Delivered as selectable sets, it monitors static or differential pressure and activates visual and audible alarms when measured values exceed configured upper or lower thresholds. GeoGuard is intended to support compliance with ventilation safety requirements.
Key features
- Pressure monitoring and alarm system for ventilation/extraction.
- Configurable kits with selectable pressure ranges and alarm options.
- Includes pressure switch, pressure hose, warning light and siren.
- Pressure ranges available to match different installation requirements.
- Visual and audible alarms triggered when pressure is outside set parameters.
- Designed for straightforward installation and operation.
- Available in multiple models for different applications.
How it works
GeoGuard measures ventilation pressure via a pressure switch connected by a pressure hose. When measured pressure falls outside the configured range, the system sends outputs to the warning light and siren to alert staff and allow corrective action. Sets are shipped configurable so integrators can select the appropriate range and alarm configuration for the installation.
Applications
Suitable for process extraction and general ventilation systems where maintaining correct pressure is required for workplace safety and regulatory compliance. Typical use cases include workshops, welding fume extraction, industrial ventilation and controlled-extraction processes.
Technical data
Voltage: 1×230 V / 50 Hz
Pressure ranges: 50–500 Pa; 500–2500 Pa; 1000–5000 Pa
Technical specifications
- Voltage: 1×230 V / 50 Hz
- Pressure ranges available: 50–500 Pa; 500–2500 Pa; 1000–5000 Pa
- Delivered as configurable sets (pressure switch, pressure hose, warning light, siren)
- Alarm outputs: visual (warning light) and audible (siren)
- Designed for straightforward installation and operation
- Multiple models/variants to match application requirements
- Complies with applicable ventilation and safety regulations
