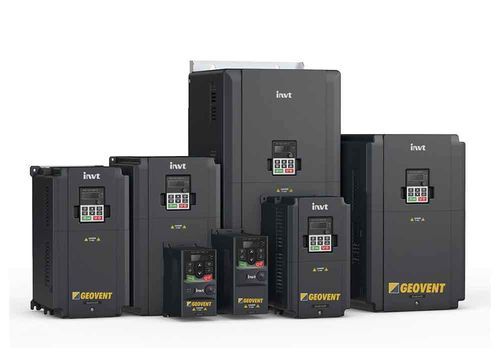

Vector control frequency inverter GeoDrive

with analog interfacethree-phasesingle-phase

Product summary
GeoDrive GD20 and GD350 are frequency inverters developed for precise, energy-efficient control of electric motors in industrial ventilation and extraction applications. GD20 provides basic sensorless vector control for smaller motors, while GD350 delivers extended control and safety functions for larger installations. Both models are designed for integration with Geovent ventilation components and control systems.

What do you get?

• Precise motor speed and pressure regulation adapted to ventilation systems.
• Energy-saving operation through adjustable motor control.
• Reduced acoustic emission thanks to controlled motor speeds.
• Simplified installation and commissioning for fast system integration.
• Long-term operational reliability with model-specific enclosure protection.

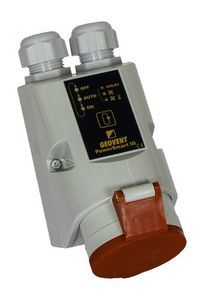

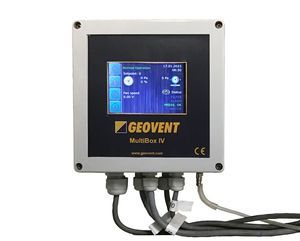

• Compatibility with Geovent fans, MultiBox IV and PowerSmart control systems.
• GD20 covers basic needs; GD350 adds advanced control and safety options.

Product information
GD20 is suited for applications requiring compact, cost-effective motor regulation and uses sensorless vector control technology. It includes an EMC filter class C2. GD350 targets higher-power and safety-critical ventilation installations, provides additional control functions and safety features, and is supplied with an EMC filter class C3 to reduce electromagnetic interference. Installation of a 300 mA residual current device (RCD) is required to meet electrical safety standards.

Technical data (table)
Header | GeoDrive GD20 | GeoDrive GD350
Voltage | 1×220–1×240 V / 50–60 Hz; 3×380–440 V / 50–60 Hz | 3×380–440 V / 50–60 Hz
Current | 2.5–9.5 A | 9.5–92 A
Power | 0.4–4 kW | 4–45 kW
Inputs | 4 (DI) | 4 (DI)
Outputs | 2 x relays | 2 x relays
Analog outputs (AO) | 2 × 0–10 V / 4–20 mA | 1 (model-specified)
Ambient temperature | -10–50 °C | -10–50 °C
Enclosure | IP20 | IP55
Dimensions (LxWxH) | See datasheet | See datasheet
Weight | See datasheet | See datasheet

Features / technical specifications

• Models: GeoDrive GD20 (sensorless vector control) and GeoDrive GD350 (advanced control and safety features).
• Supply voltage: single-phase 220–240 V and three-phase 380–440 V depending on model.
• Rated current ranges: GD20 = 2.5–9.5 A; GD350 = 9.5–92 A.
• Power range: GD20 = 0.4–4 kW; GD350 = 4–45 kW.
• Digital inputs: 4 DI on both models.
• Relay outputs: 2 relays on both models.
• Analog outputs: GD20 = 2 (0–10 V / 4–20 mA); GD350 = 1 (model-specified).
• Operating ambient temperature: -10 to 50 °C.
• Enclosure protection: GD20 = IP20, GD350 = IP55.
• EMC filter classes: GD20 = C2; GD350 = C3.
• Installation requirement: 300 mA residual current device (RCD) required.
• Dimensions and weight: detailed values available in the product datasheet.
