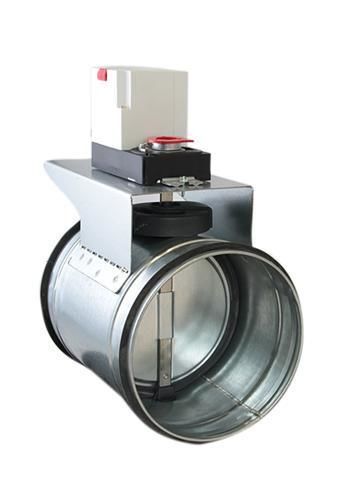

Flow control air damper GFD

regulatingmotorizedelectric

Product overview
The 24V GFD motor damper provides fast, precise airflow control for spot extraction and laboratory applications. It features a tight-seal design to minimise leakage and is available in diameters from ø80 mm to ø500 mm. The actuator opens from 0 to 90° in one second and the opening time is adjustable between 1 and 5 seconds. An optional modulating motor allows advanced control in more demanding systems.

What do you get?

• Fast actuation: 0–90° in 1 second for rapid response.
• Adjustable opening time in steps from 1 to 5 seconds.
• Available sizes from ø80 mm to ø500 mm.
• Reliable 24V motor operation consuming 11 W.
• Option for modulating motor for precise control.
• Tight-seal design to reduce air leakage and manage airflow efficiently.
• Suitable for spot extraction, laboratory setups and industrial ventilation.

Product information
The 24V GFD motor damper is engineered for efficient and repeatable control of airflow in localized extraction and laboratory environments. Its rapid stroke ensures quick system response while selectable opening times let you tune performance to the application. The actuator’s 24V supply ensures compatibility with common control systems and low power consumption. For applications requiring proportional control, a modulating motor can be specified.

Technical data
Voltage: AC/DC 24 V
Power: 11 W
Pressure range: 2000 Pa
Ambient temperature: -30 – 50°C
Enclosure: IP54

Features / technical specifications

• Voltage: AC/DC 24 V
• Power: 11 W
• Pressure range: 2000 Pa
• Ambient temperature range: -30 – 50°C
• Enclosure rating: IP54
• Opening stroke: 0–90° in 1 second (fast action)
• Adjustable opening time: 1–5 seconds
• Available sizes: ø80 mm to ø500 mm
• Optional modulating motor for advanced control
• Tight seal design for minimal air leakage
