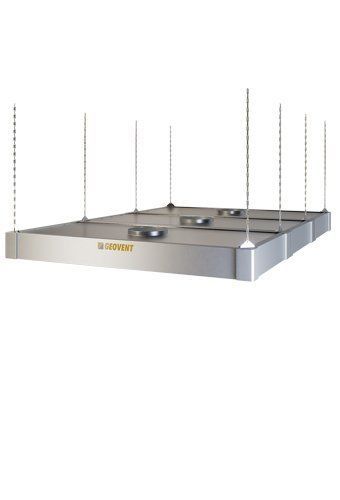

Welding robot extractor hood GeoHood MEHS

for dust removalmodularceiling-mounted

Short description
GeoHood MEHS is a modular extraction system designed for efficient removal of welding fumes, dust and vapours in industrial environments. Ideal for use with welding robots, it provides scalable extraction where spot extraction is not possible or practical.

What do you get?

• Durable galvanised steel construction for long service life.
• Modular system configurable to specific application requirements.
• Modules can be assembled to the exact size needed for the workplace.
• Efficient extraction of harmful particles: welding fumes, dust and vapours.
• Adjustable dampers to regulate airflow and suction strength.
• Flexible mounting: ceiling suspension (chains/wires) or floor columns.
• Optional extras: integrated lighting, welding slats or welding curtains available in red or green.

Product information
GeoHood MEHS is a modular extraction hood concept offering flexibility and efficiency for industrial production and welding stations. The modules come in three standard sizes (1×1 m, 2×1 m and 3×1 m), allowing configuration and assembly to match the required coverage area. Adjustable dampers enable precise control of airflow and suction speed. Installation options include ceiling suspension using chains or wires or mounting on floor columns. Brackets for welding curtains or slats (DIN EN ISO 1598/25980) can be fitted to protect the process area. Optional integrated lighting improves visibility at the work zone. Refer to the product manual for complete installation and technical instructions.

Technical data
Dimensions (L×W×H):
1,000 × 1,000 mm
2,000 × 1,000 mm
3,000 × 1,000 mm

Travel up/down:
1,000 mm

Max. air volume:
1,000 – 4,000 m³/h

Connection:
ø200 – ø250 mm

Weight:
27 – 75 kg

Characteristics / technical specifications

• Modular hood modules in three sizes: 1×1 m, 2×1 m, 3×1 m.
• Material: galvanised steel construction.
• Airflow control: adjustable dampers for accurate suction control.
• Mounting: ceiling suspension (chains/wires) or floor columns; optional brackets for curtains/slats.
• Connection sizes: Ø200–Ø250 mm.
• Performance range: 1,000–4,000 m³/h (max. air volume).
• Vertical travel (adjustment): 1,000 mm.
• Weight range per configuration: approx. 27–75 kg.
• Optional extras: integrated lighting, welding slats/curtains (DIN EN ISO 1598/25980) available in red or green.
