Laboratory extractor hood

for dust removal

Overview

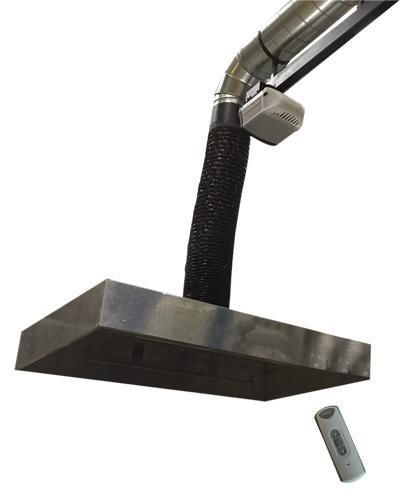

The extraction hood with 1-joint extension arm and motorized hoist provides precise local fume capture for workshops, laboratories and production facilities. The extension arm enables targeted positioning above the work area while the motorized hoist offers smooth vertical adjustment with remote control. The unit is offered in three standard sizes and connects via a Ø250 mm flange.

Key features

• 1-joint extension arm for accurate hood placement above the source.
• Motorized hoist with 600–1,000 mm adjustment range and remote control.
• Three standard hood sizes to match application footprint.
• Standard Ø250 mm connection for integration with extraction ducting.
• Compact footprint for installation over benches or machines.
• Designed for frequent position changes and operator convenience.

Product information
The 1-joint extension arm allows the hood to swing and be positioned directly above the process or workpiece to optimize capture efficiency. The motorized hoist enables reproducible height settings from 600 to 1,000 mm via remote control, facilitating rapid adaptation to different tasks. Available sizes accommodate a range of work areas and allow straightforward integration into workshop layouts.

Technical specifications

• Available sizes (L x W): 1,000 x 1,000 mm; 1,000 x 1,500 mm; 1,000 x 2,000 mm. Extension arm length: L = 2,000 mm.
• Hoist travel (motorized): 600 – 1,000 mm (remote control).
• Maximum air volume: 2,000 m³/h.
• Connection: Ø250 mm (standard flange).
• Construction: metal housing and components suited to continuous operation; designed for straightforward installation.
