Modular extractor hood ceiling-mountedwall-mountedcustom-made
Add to favorites
Compare this product
Characteristics
- Other characteristics
- ceiling-mounted, modular, wall-mounted, custom-made
- Air flow
Max.: 3,000 m³/h
(105,944 ft³/h)Min.: 1,000 m³/h
(35,314.7 ft³/h)
Description
Product overview

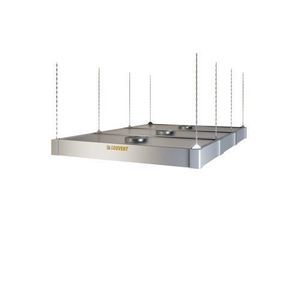

The edge-extraction hood Standard model is a galvanized exhaust hood engineered to capture smoke and fumes at local workstations where extraction arms are impractical. Available as standard units or fully customizable configurations, it is designed for wall or ceiling suspension and for use in modular installations to cover extended work areas.
Key benefits
Additional features
Technical data
Dimensions: 1200 x 1000 mm; 2200 x 1000 mm
Travel up/down: 1000 mm
Air flow rate: 1000 – 3000 m³/h
Connections: 1 x ø250 – 2 x ø250 mm
Weight: depends on configuration
The edge-extraction hood Standard model is a galvanized exhaust hood engineered to capture smoke and fumes at local workstations where extraction arms are impractical. Available as standard units or fully customizable configurations, it is designed for wall or ceiling suspension and for use in modular installations to cover extended work areas.
Key benefits
- Galvanized construction for industrial extraction of smoke and fumes.
- Standard or customizable configurations to match installation and process requirements.
- Supports wall or ceiling mounting for flexible positioning above the source.
- Adjustable slit width and connection diameters to optimize airflow for different applications.
- Optional integrated LED lighting to improve workspace visibility.
- Modular design allows hoods to be linked in series for continuous extraction along worklines.
- Compatible with extension arms and motorized hoists for precise placement.
Additional features
- Can be mounted on an extension arm to position the hood directly above the extraction point.
- Motorized hoist option (stroke 600–1,000 mm) with remote control for raising and lowering the hood.
- Galvanized finish for corrosion resistance and long-term industrial operation.
Technical data
Dimensions: 1200 x 1000 mm; 2200 x 1000 mm
Travel up/down: 1000 mm
Air flow rate: 1000 – 3000 m³/h
Connections: 1 x ø250 – 2 x ø250 mm
Weight: depends on configuration
