Extraction arm with external support arm ASA-3
fixedarticulateddust

extraction arm with external support arm
extraction arm with external support arm
extraction arm with external support arm
extraction arm with external support arm
extraction arm with external support arm
Add to favorites
Compare this product


Characteristics

Mobility
fixed
Type
articulated
Applications
dust, welding fume
Other characteristics
with external support arm
***domain
for training, for the food industry, for laser applications
Length

2 m, 3 m, 4 m (6'06")

Diameter

80 mm, 100 mm, 125 mm, 160 mm, 200 mm (3.15 in)

Description

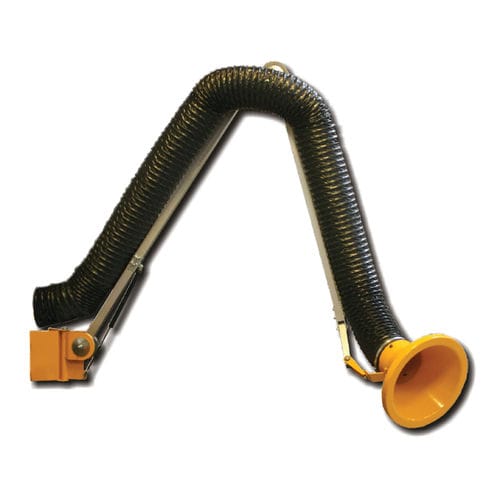

The ASA-3 extraction arm is used for the extraction of welding fumes, grinding dust etc. The extraction arm consists of 5 friction joints which make it very easy to move into the desired position. The wall bracket for the ASA-3 arm is 180° rotable. The extraction funnel is manufactured in light weight epoxy painted aluminum. Available in the lengths of 2, 3 and 4 m, but by using an extension arm it may be extended up to 9 meters. The ASA-3 arm has no internal moving parts, which reduces the pressure drop. It is available in ø80, ø100, ø125, ø160 and ø200 mm.
