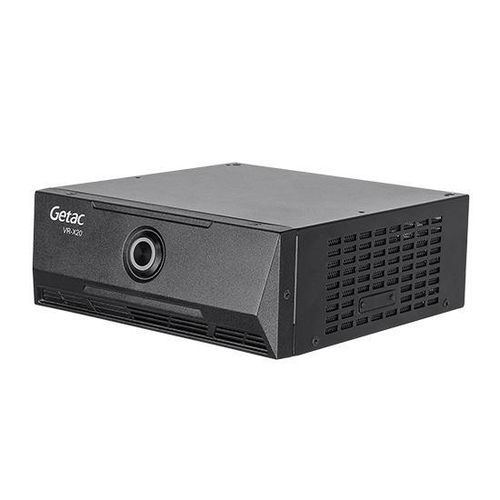

Edge AI PC VR-X20

in-vehicleIntel® Core™ Ultra 5 125HEthernet

Overview
The VR-X20 Edge Intelligence System is a rugged, AI-enabled in-vehicle computing platform powered by Intel® Core™ Ultra 5 Processor with Intel® AI Boost and Intel® Arc™ Graphics. It is engineered for data-intensive edge applications including Automated License Plate Recognition (ALPR), multi-source video merging, real-time streaming and concurrent AI workloads.

Unmatched Computing Power
Configurable with the Intel® Core™ Ultra 5 125H (up to 4.5 GHz with Turbo Boost) and integrated NPU/GPU acceleration to process AI inference and video analytics at the edge.

Extensive Connectivity Options
Includes 1 Gbps and 2.5 Gbps LAN, Intel® Wi‑Fi 7 (802.11be), Bluetooth v5.4 and optional 4G LTE for reliable data transfer and streaming to command centers.

Versatile Port Availability
Multiple I/O to connect cameras, sensors and vehicle control units: PoE x6, 2.5GbE x1, 1GbE x1, USB4 Type-C, USB3.1, serial, HDMI, audio jacks, GPIO and optional LTE/GPS antennas.

Massive Storage Capacity
Dual PCIe NVMe SSD bays and up to 2 TB per bay (configurable) for local storage of evidence, logs and AI models.

Built-In Ruggedness
Designed to MIL‑STD‑810H for operation in extreme temperatures and shock/vibration conditions common in mobile/public safety deployments.

Backup Battery
Integrated Li‑Ion backup (≈7.26V, 9600mAh) providing up to ~45 minutes of operation to preserve recordings and maintain functions during power interruptions.

Warranty
Standard 3-year limited warranty.

Key Capabilities & Technologies

• Edge AI platform supporting ALPR and multi-stream video analytics
• Intel® Arc™ Graphics and Intel® oneAPI support for accelerated image/video processing
• Configurable connectivity and storage to match deployment requirements
• Suitable for public safety, emergency services and mission-critical vehicle applications

Technical specifications

• Operating System: Windows 11 IoT Enterprise
• CPU: Intel® Core™ Ultra 5 125H — up to 4.5 GHz with Turbo Boost; 18MB Smart Cache
• Memory & Storage: 8GB DDR5 (optional 16/32GB); Primary SSD 256GB PCIe NVMe (optional 512GB/1TB/2TB); Secondary SSD 256GB PCIe NVMe (optional 512GB/1TB/2TB)
• GPU: Intel® Arc™ Graphics
• NPU: Intel® AI Boost
• I/O: PoE x6; LAN (2.5Gbps) x1; LAN (1Gbps) x1; Audio jacks x2; Serial (9-pin) x1; Audio combo x1; DC in (power & ignition) x1; USB2.0 Type-A x1; USB3.1 Gen2 Type-A x2; USB4 Gen2x2 Type-C x1; GPIO In x8 / Out x4 / 12V/1A outputs x2; GPS SMA x1; Wi‑Fi RP‑SMA x2; Control unit connector x1; HDMI x1; Optional SIM slot x1; Optional LTE MiMo SMA x2
• Communications: 10/100/1000 Base-T; 2.5GBASE-T; Intel® Wi‑Fi 7 BE202; Bluetooth v5.4; optional 4G LTE
• Security: TPM 2.0
• Power: Li‑Ion 7.26V, typ. 9600mAh (min. 9400mAh)
• Ruggedness: MIL‑STD‑810H
• Temperature: Operating -30°C to 70°C; Storage -40°C to 85°C
• Dimensions (W x D x H): 182 x 68.5 x 179 mm
• Weight: 2.08 kg
• Warranty: 3-year limited
• Options: Additional memory/storage configurations; 4G LTE units include SIM slot; certifications: FCC, IC, CE, RCM
