LCD monitor CU-D50

TFTmulti-touch screenfor vehicles

Product Overview

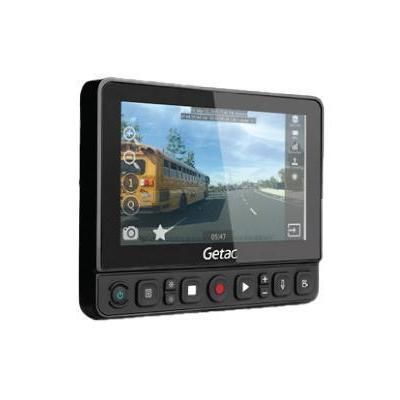

The CU-D50 is a 5-inch TFT LCD HD display designed for mobile and in-vehicle installations. With a native resolution of 800×480 (approximately 2.5× the resolution of comparable 4.3" displays), it provides a larger viewing area while maintaining a reduced overall assembly footprint for easier transport and mounting.

Key Features

• 5-inch TFT LCD HD screen
• 800 × 480 resolution (approx. 2.5× resolution compared to nearest competitor)
• Multi-touch technology
• User-friendly control buttons for frequent use
• Reduced overall footprint for easier mobile transport

Control Buttons (examples listed on product)

• Power / covert operation
• Menu
• Brightness
• Stop record
• Start record
• Play
• Zoom / volume
• Microphone
• Camera

Ports

• USB 2.0 (admin lockable)

Industries / Typical Applications

• Public Safety: ambulance, fire & rescue and policing applications
• In-vehicle / mobile transport installations

Specifications

• Size: 5-inch
• Type: TFT LCD HD
• Resolution: 800 × 480
• Touch: Multi-touch technology
• Buttons: power/covert op, menu, brightness, stop record, start record, play, zoom/volume, microphone, camera
• Ports: USB 2.0 (admin lockable)
• Dimensions: 5.4” x 4.4” x 0.8” (L x H x D excluding mount and projecting parts)
• Weight: 0.6 lbs
• Note: Specifications subject to change. Custom options available based on customer requirements.
