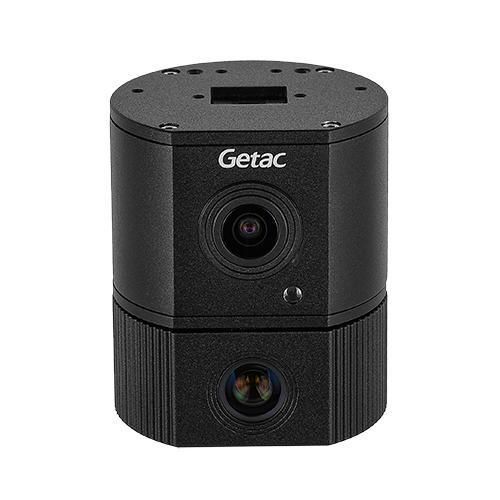

QHD camera CA-NF22

for vehiclesmonitoringsecurity

Overview
The CA-NF22 QHD dual-lens in-vehicle camera is engineered for patrol and law enforcement operations, providing dual 2K (QHD) imaging with HDR encoding for balanced exposure across high-contrast and low-light scenes. The top panoramic lens is rotatable (90° left / 225° right) to extend coverage while the secondary normal-view lens captures detailed forward scenes. The unit meets MIL-STD-810H standards for rugged field use and operates across a wide temperature range.

Key Capabilities

• Rotatable top lens: 90° left / 225° right rotation for expanded situational coverage.
• Dual 2K QHD cameras with HDR encoding for clear, balanced captures in varied lighting.
• Optimized low-light performance with low-noise imaging for night operations.
• Complementary panoramic and normal-view lenses tailored for patrol and public-safety recording.
• Rugged construction and wide operating temperature range for reliable field deployment.
• 3-year standard limited warranty.

Selected Feature Highlights

• Precision optics and improved situational awareness for public safety and fleet use.
• Wide panoramic top lens plus narrower bottom lens for overlapping, complementary coverage.
• Power over Ethernet (PoE) connectivity for simplified cabling and power delivery.
• Standard windshield mounting options for vehicle installation.

Technical Table (selected rows)
Video Output Format: H.264, H.265
Video Output Resolution: 1920×1080 (1080P)
Video Output Frame Rate: 30 fps

Top - Camera 1
FOV (Field of View): 150° Diagonal / 133.2° Horizontal / 78.7° Vertical
View Type: Panoramic
LUX: Color < 0.1

Bottom - Camera 2
FOV (Field of View): 43° Diagonal / 37.3° Horizontal / 21.6° Vertical
View Type: Normal View
LUX: Color < 0.1

Additional Technical Details (table)
Connectivity Interface: Power over Ethernet (PoE)
Dimensions (W x D x H): 55 x 55 x 64 mm (2.3” x 2.3” x 2.5”)
Operating Temperature: -30° to 60° C (-22° to 140° F)
Weight: 203.1 g (0.45 lbs)
Rugged Features: MIL-STD-810H
Mount Options: Windshield mount
Exposure / Warranty: 3-year standard limited warranty

Applications

• Public safety and emergency response: ambulance, fire & rescue, policing.
• In-vehicle video capture for evidence collection, incident review and situational awareness.

Technical specifications

• Model: CA-NF22
• Video output format: H.264, H.265
• Video resolution: 1920×1080 (1080P)
• Frame rate: 30 fps
• Top camera FOV: 150° Diagonal / 133.2° Horizontal / 78.7° Vertical (Panoramic)
• Top camera LUX sensitivity: Color < 0.1
• Bottom camera FOV: 43° Diagonal / 37.3° Horizontal / 21.6° Vertical (Normal View)
• Bottom camera LUX sensitivity: Color < 0.1
• Connectivity: Power over Ethernet (PoE)
• Dimensions: 55 x 55 x 64 mm (2.3” x 2.3” x 2.5”)
• Operating temperature: -30° to 60° C (-22° to 140° F)
• Weight: 203.1 g (0.45 lbs)
• Rugged standard: MIL-STD-810H
• Mounting: Windshield mount
• Warranty: 3-year standard limited warranty
• Special features: Rotatable lens (90° left / 225° right), HDR encoding, optimized low-light, low-noise imaging
