HDR camera CA-NF21

for vehiclesfor night visioninfrared

Product Overview

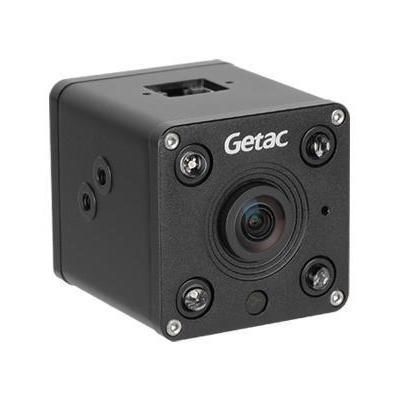

The ZeroDark CA-NF21 is an FHD infrared backseat camera designed for vehicle interior monitoring. It combines full‑HD imaging, integrated infrared illumination and Power over Ethernet (PoE) to capture clear onboard footage in low‑light and nighttime conditions while maintaining a compact profile suited to confined vehicle interiors.

Key Features

• Full HD imaging with open-standard encoding (H.264) to optimize video clarity and storage efficiency.
• Exceptional low-light performance: sensors and IR allow capture down to 0.00 lux (IR LED on).
• Built-in infrared illumination: 4 IR LEDs for consistent nighttime visibility.
• Compact, low‑profile design for reduced in‑vehicle obstruction and improved mounting flexibility.
• Wide panoramic coverage: 120° horizontal / 146° diagonal field of view for comprehensive backseat monitoring.
• Power over Ethernet (PoE) simplifies installation and cabling.

Typical Industries / Applications
Public safety and emergency vehicles: ambulance, fire & rescue, policing, prisoner transport and other in‑vehicle surveillance requirements.

Technical Specifications

• Aperture: F2
• Focal Length: 2.6 mm
• Low-light Capability: 0.00 lux (IR LED On); IR: Built-In IR LEDs (4ea)
• Exposure: Dual Exposure, HDR technology
• Dimensions (W x D x H): 46 x 48 x 46 mm (1.81” x 1.89” x 1.81”)
• Weight: 184 g (0.41 lbs)
• FOV (Field of View): 120° Horizontal / 146° Diagonal
• Position: Fixed
• View Type: Panoramic
• LUX: 0.05 lux @ Color
• Video Output Format: H.264
• Video Output Resolution: 1920×1080 (1080P), 1280×720 (720P), 768×432 (D1)
• Video Output Frame Rate: 30 fps
• Network / Connectivity Interface: Power over Ethernet (PoE)
• Operating Temperature: -30° to 60° C (-22° to 140° F)
• Rugged: MIL-STD-810H
• Mount Options: Standard Mount
• Warranty: 3-year standard limited warranty (extended plans available)
