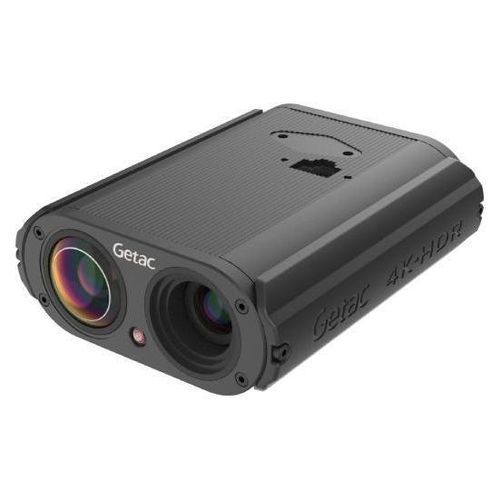

Digital camera CA-NF42

HDRfor vehiclesfor license plates

Overview
ZeroDark CA-NF42 in-vehicle camera designed for situational awareness and patrol operations. It combines two 4K HDR sensors with AI-enabled automatic license plate recognition (LPR) to support visibility, evidence capture and vehicle tracking.

Summary

• Two integrated 4K HDR cameras providing detailed imagery with strong low-light performance and reduced video noise.
• Wide field of view to keep traffic stops and on-camera events within frame.
• AI-powered License Plate Recognition (LPR) detecting plates at distances up to 65 ft (≈20 m) to improve situational awareness and vehicle identification.

Key Features

• Auto License Plate Recognition (AI-enabled LPR).
• Dual 4K (UHD) resolution with HDR encoding for both wide-angle and standard view cameras.
• Wide Field of View (FOV) for broader scene coverage.
• Enhanced low-light performance with minimal visual noise for night or low-illumination conditions.

Technical specifications

• Model: CA-NF42
• Left — Camera 1: Focal length 3.2 mm; FOV 150° Diagonal / 133° Horizontal / 77° Vertical; Position: Fixed; View Type: Panoramic; LUX: Color 0.03 (night low-light).
• Right — Camera 2: Focal length 7.8 mm; FOV 59° Diagonal / 53° Horizontal / 31° Vertical; Position: Fixed; View Type: Normal (for ALPR); LUX: Color 0.03 (night low-light).
• Network: Power over Ethernet (PoE).
• Video Output Format: H.264, H.265.
• Video Output Resolution: 3840 x 2160 (UltraHD), 2560 x 1440 (QuadHD), 1920 x 1080 (FHD).
• Video Output Frame Rate: 30 fps, 15 fps.
• Connectivity Interface: PoE, RJ45.
• Operating Temperature: -30° to 60° C / -22° to 140° F.
• Dimensions (W x D x H): 83 x 100 x 34 mm (3.27” x 3.94” x 1.34”).
• Weight: 281 g (0.62 lbs).
• Rugged Features: MIL-STD-810H.
• Mount Options: Mounting Arm.
• Warranty: 3-year standard limited warranty (extended plans available).
