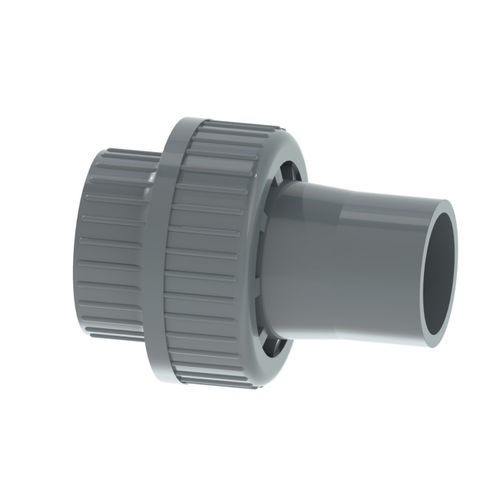

Union fitting 721510305hydraulicscrew-insocket

union fitting
union fitting
union fitting
union fitting
union fitting
union fitting
union fitting
Add to favorites
Compare this product
indicative price

Characteristics

Applications
hydraulic
Attachment
screw-in, socket
Configuration
straight
Material
PVC, metal
Other characteristics
union, rugged
Diameter

Max.: 110 mm (4.331 in)

Min.: 10 mm (0.394 in)

Operating pressure

Max.: 16 bar (232.06 psi)

Min.: 6 bar (87.02 psi)

Description

Unions - GF Piping Systems Unions are the best mechanical connection between pipe segments and for installing all kinds of components up to the dimensions of d110/DN100. Unions are available in a wide range of materials and jointing options. The connection is fast and very robust. PRO-FIT union PVC-U metric Model: •Union End: Solvent cemented spigot in combination with reducing socket metric •Union Bush: Solvent socket metric •Gasket: O-Ring EPDM code no. 748 410 005-011; FKM: 749 410 005-011 PRO-FIT adaptor union PVC-U metric Rp Model: •Union End: Solvent cemented spigot in combination with reducing socket metric •Union Bush: Threaded socket with parallel female thread Rp •Gasket: O-ring EPDM code no. 748 410 005-011 •Gasket: O-ring FKM code no. 749 410 005-011 (to be ordered separately) •Connection to plastic thread only •Do not use thread sealing pastes that are harmful to PVC-U Adaptor union PVC-U metric Inch BS Model: •Union End: Solvent cement socket metric •Union Bush: Solvent cement socket BS inch •Gasket: O-ring EPDM code no. 748 410 005-011 •Gasket: O-ring FKM code no. 749 410 005-011 (to be ordered separately) Union for solvent cement jointing PVC-U metric/ASTM Model: •Union End: Solvent cement socket ASTM •Union Bush: Solvent socket metric •Gasket: O-ring EPDM code no. 748 410 005-011 •Gasket: O-ring FKM code no. 749 410 005-011 (to be ordered separately)
