For the production of rolls of: BOPP and SELF-ADHESIVE TAPES.
It is manufactured in 2 versions:
with direct connection to the shrink-wrappers
with a connection to the interface to the shrink-wrapper.
Working width: up to 2150 mm.
Min. slitting width: 12 mm.
Max finished rolls diameter: 170 mm. (210 mm. on demand)
Minimum gap group
Rolls inside diameter: 3”
Slitting system: razor blades (score knives upon request)
Mechanical speed: 550 m./min.
TIME NEEDED FOR THE SIZE CHANGEOVER: 20 MIN. APPROX.
Cycle time for 50 m. rolls = from 16 to 18 sec..
Cycle time for 100 m. rolls = 21 sec. approx.
THE TIMES VARY ACCORDING TO WORKING WIDTH OF THE SLITTER-REWINDER
PACK-ROLL group to produce rolls of “superclear” and to remove the air bubbles from the rolls
Rolls conveyance system to Packaging machines

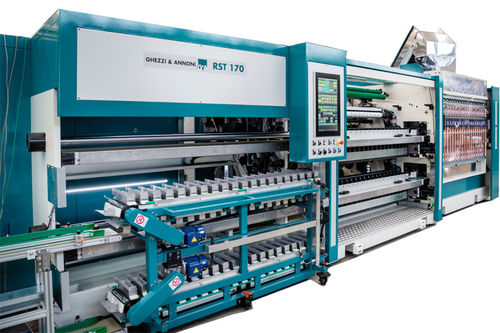

The RSt170 Slitter-Rewinder works in line with different models of Packaging machines and Carton Fillers:
LS60 : for FLAT configurations
ATI30 e ATI20: for INDIVIDUAL, ACCORDION, TOWER configurations
IP120 e IP120/2: Pick & Place Carton Fillers
PS20: Palletizing unit
