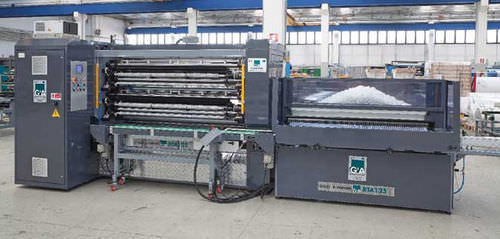

Adhesive tape slitter-rewinder max. 1 800 mm, max. ø 125 mm | RTA 125

adhesive tape slitter-rewinder
adhesive tape slitter-rewinder
adhesive tape slitter-rewinder
adhesive tape slitter-rewinder
adhesive tape slitter-rewinder
adhesive tape slitter-rewinder
adhesive tape slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
for adhesive tape
Working width

2,000 mm
(79 in)

Description

“MULTI-PURPOSE” Slitter-Rewinder able to produce rolls of different self-adhesive materials. with inside diameter from 3” to 1” The quick size changeovers and the various slitting systems installed make the RTA125 a machine suitable to run both small and large orders. By using the PACK-ROLL group it is possible to produce “Superclear” BOPP rolls. Working width: up to 2000 mm. Min. slitting width: 9 mm. Max. finished rolls diameter: 125 mm. Finished rolls inside diameter: 1” – 1 ½ “ – 2” – 3” Slitting systems: in-air razor blades, in-groove razor blades, score knives, shear knives Rewinding group for with 4 or 8 rewinding shafts. Automatic end-tab application Automatic transversal cut-off Automatic core Loader in line with the Slitter-Rewinder Automatic transfer of the rewinding shafts from the Slitter-Rewinder to the Core Loader and vice versa Cycle time for 10 m. BOPP rolls = 18 sec. approx. Cycle time for 50 m. BOPP rolls = 27 sec. approx. Pack-roll group to produce rolls of “Superclear” Double-adhesive and silicone tabs for special laminated materials Systems for rolls positioning and conveyance to the Packaging Machines Other fittings according to the material to be converted
