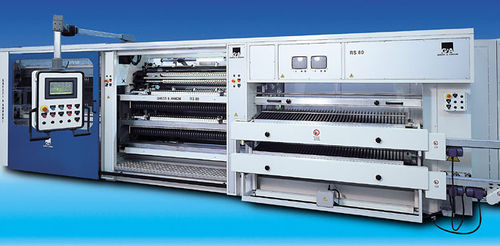

Automatic slitter-rewinder max. 2 000 mm, ø 80 - 110 mm | RS 80
for adhesive tape

automatic slitter-rewinder
automatic slitter-rewinder
automatic slitter-rewinder
automatic slitter-rewinder
automatic slitter-rewinder
automatic slitter-rewinder
automatic slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
for adhesive tape
Options
automatic
Working width

2,000 mm (79 in)

Speed

5 m/s (16 ft/s)

Description

RS 80 produces self-adhesive rolls of BOPP - ACETATE - CELLOPHANE on 1" internally thick cores. It is manufactured in three versions, a STANDARD edition with the PACK ROLL system to prevent the formation of fish eye in order to obtain clearance to the core rolls and for 1 1/2" rolls edition. The unit features working thickness of up to 2000 mm, with 12 to 50 mm slitting diameter. There is a 80 mm-110 m of maximum width of finished rolls. An internal core diameter of 1"-1 1/2", score knives, with free blade and guided blades as slitting units and a 300 mt./min mechanical speed. A 25 minute slitting width changeover time with 14 second production cycle time for 10 m rolls and 18 second Cycle time for 33 m. There cycle time for 10 m rolls with the Pack Roll unit is 17 seconds. There are substitute rewinder pressure rolls available for Pack Rol,l as an accessory.
