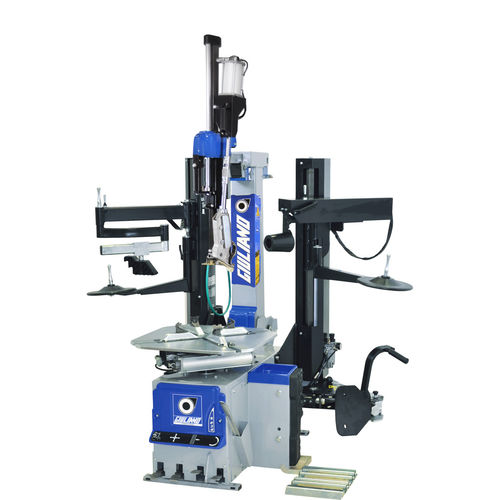

Car tire changer S 234 L-N-L
superautomaticpneumatic

car tire changer
car tire changer
Add to favorites
Compare this product


Characteristics

Applications
for car
Type
superautomatic
Other characteristics
pneumatic
Max wheel width

406 mm (16 in)

Clamping diameter

Min.: 10 in

Max.: 28 in

Max wheel diameter

1,120 mm (44.1 in)

Description

High performance super-automatic lever - no lever tyre changer, specially designed for low profiled and UHP tyres, ideal for tyre specialists; suitable for car wheels with rim from 10" to 28" (max. wheel diameter 1120 mm./44", max. wheel width 406mm./16"). Turntable with double-cylinder, adjustable clamps positioning and pedal operated two speed bidirectional rotation system. Equipped with combined two assist arms for easy mounting/demounting tyres. Equipped with Lever-No Lever technology that combines the advantages of “leverless” device to those of a standard mount/demount tool. Functions Tilting tower, sliding horizontal arm with ø 41 mm operating arm; Bead breaker double effect Cylinder ø 200 mm; Reinforced Chassy and tower; Equipped with Lever - No Lever tyre mounting/demounting system (Giuliano Patent); Tabletop thickness 14 mm w/adjust. jaws (Giuliano Patent); Double rotation speed by pedal; Tyre inflation by pedal (standard); Patented SBS System for bead breaker shovel travel memory; Equipped with Help and Press Arm (standard) Suitable for Tubeless tyre bead seating system (optional); “Easy Access” extractable pedal box for quick service; Adjustable bead breaker shovel angle; QuadraLock system for total stiff locking of horizontal and operating arm; PO System, Giuliano patent, for granting no BB shovel stuck into the rim; Robotic pipe for operating arm positioning/lock; Suitable for Wheel Lifter (optional). WDK: Version available upon request Rim clamping range from outside10" - 26" By adjustable jaws Rim clamping range from inside12" - 28" By adjustable jaws Max. tyre diameter1120 mm (44") Max. tyre width406 mm (16")
