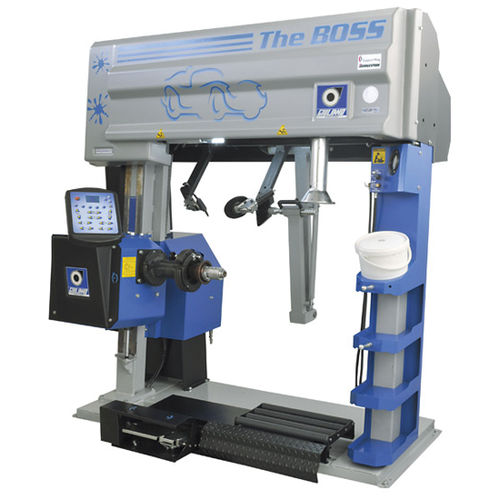

Superautomatic hydraulic next generation no contact leverless tyre changer, suitable for fitting/removing all kinds of tyres for passenger's cars and LCVs 10"-30" (max. wheel diam. 1200 mm/47", max. wheel width 406 mm./16"), equipped with new-design automatic finger-tool, to remove tyre bead without using the traditional bead lifting lever and without any risk of damaging the rim because of no contact between finger tool and rim (no contact and leverless tyre-changer).
All functions hydraulic, controlled by soft touch panel;
Tyre assembly clamped in vertical position, to see and easy access both sides;
Automatic positioning of clamping chuck according to wheel size;
Fully automatic No Contact robotic finger tool for tyre fitting/removing operations;
Hydraulic spindle chuck controlled by pedal;
Tyre inflation by switch (standard);
Equipped with Tyre Lift (standard);
Equipped with Press Arm (standard).
WDK: Version available upon request
Rim clamping range10" - 30"
Max. tyre diameter1200 mm (47")
Max. tyre width406 mm (16")
For reverse mounted wheels, variable according to rim features
Bead breaker cylinder force at 10 Bar12265 N
Operating pressure130 bar (1885 psi)
Power supply400V 3ph / variable speed
Hydraulic pump motor power1,1 kW
Clamping chuck motor power0,75 kW
Chuck rotation speed3 - 14 rpm
Pre-set tyre inflating pressure3,5 bar (50 psi)
Net weight705 Kg
Max overall dimensions1930x1370x1940 mm
