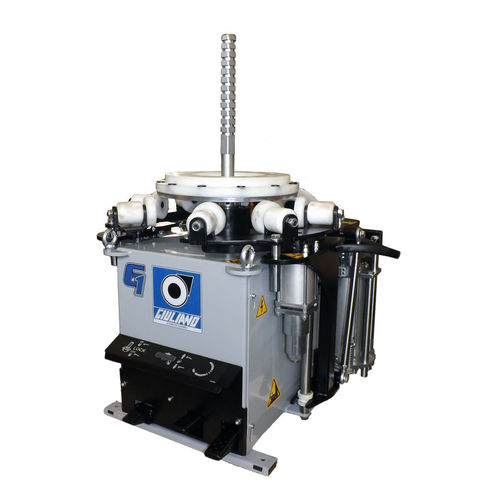

Automatic tyre changer for race tyres with rim from 13" to 19" (max. wheel diameter 640mm/25", max. wheel width 330mm./13").
G1 Sport tyre changer is the result of Giuliano know-how, applied to race car tyres service, and it is uniquely dedicated to be used in most famous international motor sport events.
The tyre changer has been specially designed for tyre servicing in racing competitions, where performance, speed, and power are key factors for winners.
G1 Sport is approved & endorsed by the best race tyre manufacturers.
Pneumatic wheel clamping through center shaft and quick ring nut with nylon cone, to avoid any damage to the rim;
Nylon made, self-centering support face plate, to avoid any damage to the rim;
Adjustable bead breaker rollers, air operated, to break the bead of 13" - 19" race tyres;
Top bead fitting device all in one tool, including bead depressor;
Equipped with "Easy-Move" transportation kit;
Double rotation speed, 8 - 16 rpm;
All mount and demount tools coated in nylon, in order to avoid any damage to the rim;
"Easy Access" extractable pedal box for quick service.
Max. tyre diameter640 mm (25")
Max. tyre width330 mm (13")
Operating pressure10 bar (145 psi)
Power supply230V (1ph) 50÷60Hz
Motor power0,75 kW
Rotating speed8÷16 rpm
Net weight195 Kg
Min overall dimensions975 x 750 x 980 mm
