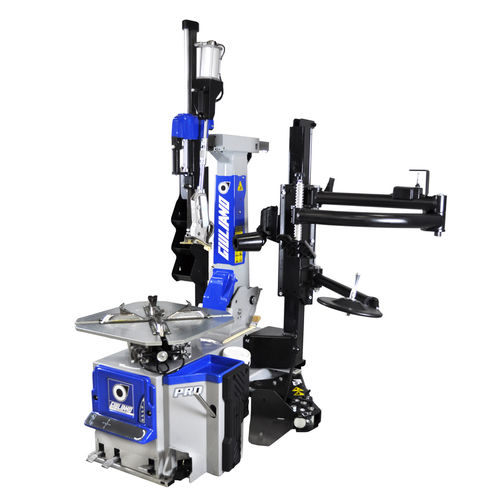

Car tire changer S 228 PRO L-N-L
superautomaticpneumatic

car tire changer
car tire changer
Add to favorites
Compare this product


Characteristics

Applications
for car
Type
superautomatic
Other characteristics
pneumatic
Max wheel width

415 mm (16 in)

Clamping diameter

Min.: 10 in

Max.: 28 in

Max wheel diameter

1,100 mm (43.3 in)

Description

Racing super-automatic lever - no lever tilt back tyre changer machine for tyres with rim from 10" to 28" (max. wheel diameter 1100 mm./43", max. wheel width 415mm./16"). In contrast to S 228 PRO DUO L-N-L, this model is equipped with additional double arm (instead of two assist arms) for easy and secure mount/demount operation. PO system grants no bead breaker blade stuck into the rim during bead-breaking operations. Suggested for high volume tyre shops, servicing racing, run flat and UHP tyres. Functions Tilting tower, sliding horizontal arm with ø 41 mm operating arm; Bead breaker double effect Cylinder ø 200 mm; Reinforced Chassy and tower; Equipped with Lever - No Lever tyre mounting/demounting system (Giuliano Patent); Tabletop thickness 14 mm w/adjust. jaws (Giuliano Patent); Double rotation speed by pedal; Tyre inflation by pedal (standard); Adjustable bead breaker shovel angle; Equipped with HP2 dual assist arm (standard) and storage box; Suitable for Tubeless tyre bead seating system (optional); “Easy Access” extractable pedal box for quick service; PO System, Giuliano patent, for granting no BB shovel stuck into the rim; Robotic pipe for operating arm positioning/lock. WDK: Version available upon request Rim clamping range from outside10" - 26" By adjustable jaws Rim clamping range from inside12" - 28" By adjustable jaws Max. tyre diameter1100 mm (43") Max. tyre width415 mm (16") Bead breaker cylinder force at 10 Bar30800 N Operating pressure10 bar (145 Psi) Power supply400V - 3ph / 2 speed 220V - 1ph 220V - 1ph / 2 speed Motor power0,8/1,1 kW (3ph) Rotating speed7-14 rpm Pre-set tyre inflating pressure3,5 bar (50 Psi) Net weight379 Kg
