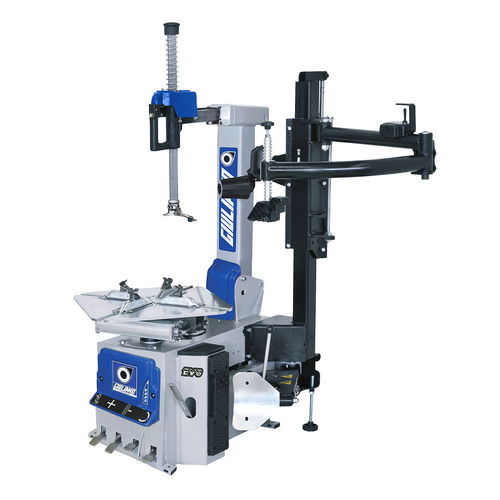

Car tire changer S 225 EVO
automaticpneumatic

car tire changer
car tire changer
Add to favorites
Compare this product


Characteristics

Applications
for car
Type
automatic
Other characteristics
pneumatic
Max wheel width

390 mm (15 in)

Clamping diameter

Min.: 10 in

Max.: 24 in

Max wheel diameter

1,010 mm (39.8 in)

Description

Car Suitable for car wheels Automatic Model with four control pedals, tilting tower, sliding horizontal arm and operating arm with manual lowering and locking by pushing button. 10"-24" Allows to operate with tyre assemblies from 10" to 24". Jaw Clamping Rim clamping is performed by means of 4 jaws facing each other, driven by pneumatic cylinders connected to the control pedal. Blade Bead Breaking Bead breaking by conventional blade, works with tyre assembly in vertical position HP LIGHT Additional pneumatic helper tower with 2 functions Automatic tilt back tyre changer with dual assist arm. For low-mid volume shops, garages and repair shops. Functions Tilting tower, sliding horizontal arm with Ø 41 mm operating arm; Bead breaker double effect Cylinder Ø 200 mm; Reinforced Chassis; Tabletop thickness 12 mm; Fitting head designed for both standard and low profiled tyre applications; Tyre inflation by pedal (optional); Equipped with HP Light dual assist arm (standard); Suitable for Tubeless tyre bead seating system (optional).
