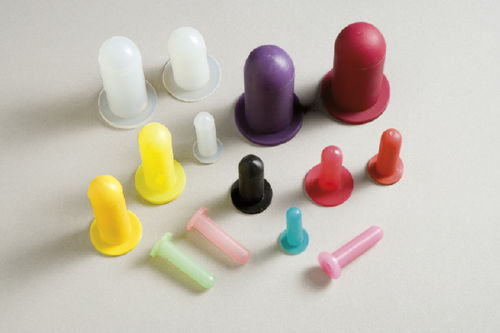

Silicone Washer Cap
REFERENCE:
SFC
DESCRIPTION:
Silicone Washer Cap 315ºC
MATERIAL:
High temperature Silicone 315ºC
See the material data sheet
DIMENSIONAL TOLERANCE
The dimensional tolerance of the Silicone Washer Cap is according the RMA A3
APLICATIONS:
Powder Coating, Wet Coating, E-Coating, Plating, Anodizing.
USES:
This Washer cap is used to mask studs and bolts and the surrounding area.
RECOMMENDATIONS for USE:
The inner diameter “B” should be between 0.3 and 0.5 mm below the diameter of the bolt to be
protected so the cover fits well and doesn’t fall during the process.
Choose the most appropriate washer diameter “A” to mask the surrounding area.
STORAGE RECOMMENDATIONS:
Storing this product away from direct sunlight and at a temperature between 20º C and 25º C is
recommended in order to prevent any modifications to the properties such as flexibility, elasticity or
decolouring, among others.
The material this product is made of possesses no health risk nor is it considered hazardous requiring
consideration when handling or storing it.
EXPIRY
This product does not expire, but it may lose plasticity and flexibility if stored inappropriately and/or for
more than 5 years.
USEFUL LIFE OF THE PRODUCT
The useful life of this product depends on the conditions and loads it is subjected to during the
process.
Chemical products may reduce the useful life of the product.
