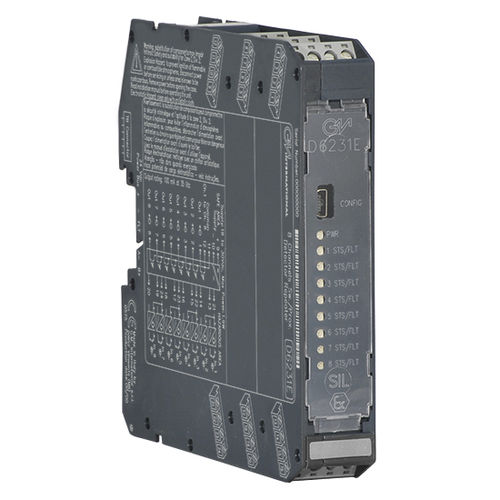

Industrial repeater D6231E

RS-485isolatedDIN rail

The Switch/Proximity Detector Repeater D6231 is a module suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors and repeats the input state to a solid-state relay contact. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. The module is fully configurable to achieve input/output multiplexing, duplication, inversion, and input logical elaboration (AND, OR). Each output can also be configured to report the cumulative fault of any input subset. Configuration and diagnostic parameters are programmable and can also be monitored/set through Modbus. FEATURES SIL 2 / SC 3 Field open and short circuit detection Input muxing/duplication/inversion/operations available Modbus RTU RS-485 for monitor & configuration Fully programmable operating parameters Three port isolation, Input/Output/Supply High Density, eight channels per unit
