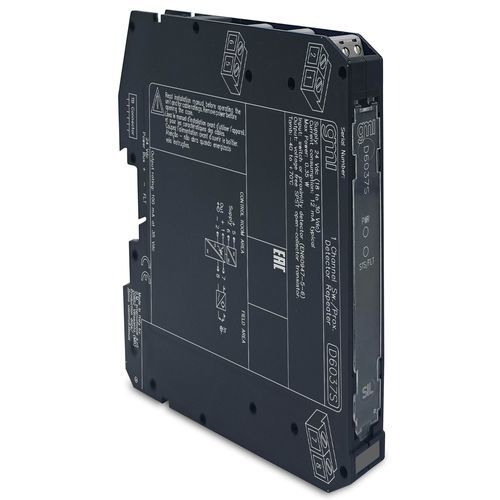

Current repeater D6037S

DIN rail

The Switch/Proximity Detector Repeater D6037 is a module suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to an open-collector transistor in Safe Area. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. If needed, the output can also be inverted.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2High frequency transistor outputField open and short circuit detectionIn-field programmability by DIP SwitchThree port isolation, Input/Output/SupplyHigh Density, two channels per unitTechnical Specifications:SupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption12 mA @ 24 Vdc with short circuit input and transistor closed, typical.Power Dissipation0.30 W @ 24 Vdc with short circuit input and transistor closed, typical.InputInput switching current levelsON ≥ 2.1 mA, OFF ≤ 1.2 mA.Fault current levelsopen fault ≤ 0.2 mA, short fault ≥ 6.8 mAInput equivalent source8 V 1 kΩ typical (8 V no load, 8 mA short).OutputTypeOpen-collector/drain rating100 mA @ 35 Vdc (≤ 1.5 V voltage drop).Leakage current≤ 50 μA @ 35 Vdc.Response time≤ 100 μs.Frequency response5 kHz maximum.IsolationTest VoltageI.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/ I.S In 500 V; Out/Supply 500 V; Out /Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 110 g.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1
