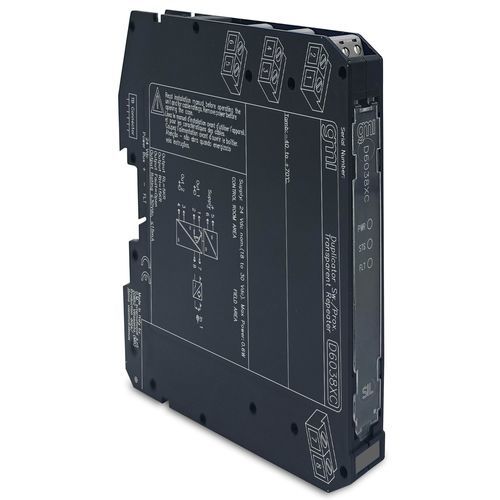

Current repeater D6038XC

DIN railuniversal

The Switch/Proximity Detector Repeater D6038 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors and repeats the input state to the output. The output port can assume two different impedance values (RL or RH) or it can open completely. The module output repeats the input state according to the following correspondence: low input state -> RL, high input state -> RH. Alternatively, the output can be configured to invert the input state. In both cases, the output opens if any fault (open or short circuit) occurs at the corresponding input.SIL 3 / SC 3Field open and short circuit detectionField fault universal mirroring to PLC DIThree port isolation, Input/Output/SupplyIn-field programmability by DIP SwitchHigh Density, two channels per unitTechnical Specifications:Supply:Voltage: 24 Vdc nom. (18 to 30 Vdc), reverse polarity protected.Current Consumption: 25 mA @ 24 Vdc, typical.Power Dissipation: 1.0 W @ 24 Vdc, typical.Input:Input switching current levels: ON ≥ 2.1 mA, OFF ≤ 1.2 mA.Open Fault: Current ≤ 0.05 mA.Short fault: Resistance ≤ 100 Ω.No Fault: Current ≥ 0.35 mA and resistance ≥ 360 Ω.Input equivalent source: 8 V 1 kΩ typical (8 V no load, 8 mA short).Output:Type: Voltage free SPST solid-state relays, with series (RL) and parallel (RH-RL) resistances, ±5% tolerance.Fault impedance: > 1 MΩ.Max voltage: 30 Vdc.Response time: 500 µs.Frequency response: 1 kHz maximum.Isolation:Test Voltage: In/Out 1.5 kV; In/Supply 1.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditions:Operating temperature: –40 to +70 °C.Storage temperature: –45 to +80 °C.Mounting:Type: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weight: about 135 g.Connection: By polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm.Channels: 1Status: ACTIVE
