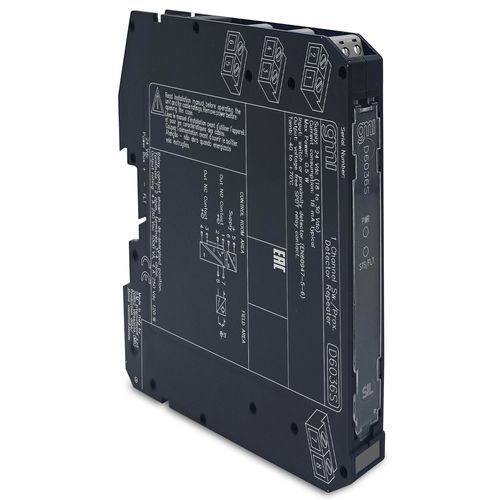

Current repeater D6036S

DIN rail

SIL2 Switch/Proximity Relay-Out RepeaterThe Switch/Proximity Detector Repeater D6036 is a module suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors and repeats the input state to a relay contact. The selectable fault detection circuit is available for proximity sensors or switches equipped with end of line resistors. If needed, the output can also be inverted.SIL 2 / SC 3High voltage/current rating relay outputField open and short circuit detectionIn-field programmability by DIP SwitchThree port isolation, Input/Output/SupplyHigh Density, two channels per unitStatus: ACTIVEChannels: 1Technical DataSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption18 mA @ 24 Vdc with short circuit input and relay energized, typical.Power Dissipation0.45 W @ 24 Vdc with short circuit input and relay energized, typical.InputInput switching current levelsON ≥ 2.1 mA, OFF ≤ 1.2 mA.Fault current levelsopen fault ≤ 0.2 mA, short fault ≥ 6.8 mA.Input equivalent source8 V 1 kΩ typical (8 V no load, 8 mA short).OutputTypeVoltage free SPDT relay contact.Contact materialAg Alloy (Cd free), gold plated.Contact rating4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W (resistive load).Contact min. switching current1 mA.DC and AC load breaking capacityrefer to Instruction Manual.Mechanical / electrical life5 * 10⁶ / 3 * 10⁴ operation, typical.Operate / release time8 / 4 ms, typical.Frequency response10 Hz maximum.IsolationTest VoltageI.S. In/Out 1.5 kV; I.S. In/Supply 1.5 kV; I.S. In/ I.S In 500 V; Out/Supply 1.5 kV; Out/Out 1.5 kV.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 10.5 V, Io = 22 mA, Po = 56 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus.Weightabout 120 g.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Certifications:EMC: D5000/D6000 EAC EMC Declaration of Conformity (Eurasian Community, ЕАЭС N RU Д-IT.PA08.B.82326/24, CONTROL, 2024-09-26)SIL: TUV IT 25 SIL 0635 SIL Certificate Summary (International, TUV IT 25 SIL 0635, TUV_SUD, 2025-09-19)Declarations of Conformity:EU Declaration of Conformity for D6000 seriesDeclaration of Conformity G3 complianceCharacteristics / Technical Specifications:Product type: SIL2 Switch/Proximity Relay-Out RepeaterChannels: 1Relay output: High voltage/current ratingField open and short circuit detectionProgrammability: DIP SwitchIsolation: Three port (Input/Output/Supply)Mounting: DIN-Rail 35 mmDimensions: 12.5 x 123 x 120 mmWeight: ~120 gOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °C
