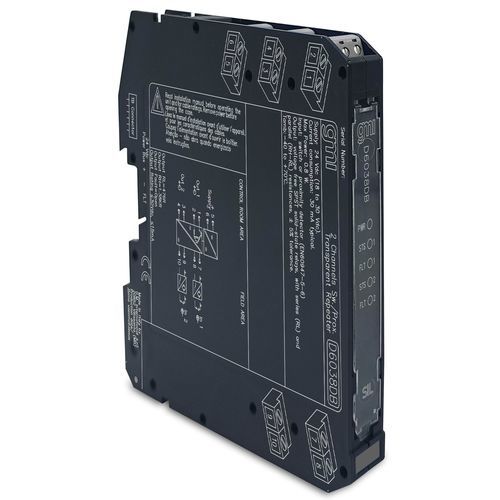

Current repeater D6038DB

DIN railuniversal

The Switch/Proximity Detector Repeater D6038 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries. The unit can be configured for switches or proximity detectors and repeats the input state to the output. The output port can assume two different impedance values (RL or RH) or it can open completely. The module output repeats the input state according to the following correspondence: low input state -> RL, high input state -> RH. Alternatively, the output can be configured to invert the input state. In both cases, the output opens if any fault (open or short circuit) occurs at the corresponding input.SIL 3 / SC 3Field open and short circuit detectionField fault universal mirroring to PLC DIThree port isolation, Input/Output/SupplyIn-field programmability by DIP SwitchHigh Density, two channels per unitStatus: ACTIVEChannels: 2Technical DataSupplyVoltage24 Vdc nom. (18 to 30 Vdc), reverse polarity protected.Current Consumption30 mA @ 24 Vdc, typical.Power Dissipation1.0 W @ 24 Vdc, typical.InputInput switching current levelsON ≥ 2.1 mA, OFF ≤ 1.2 mA.Open FaultCurrent ≤ 0.05 mA.Short faultResistance ≤ 100 Ω.No FaultCurrent ≥ 0.35 mA and resistance ≥ 360 Ω.Input equivalent source8 V 1 kΩ typical (8 V no load, 8 mA short).OutputTypeVoltage free SPST solid-state relays, with series (RL) and parallel (RH-RL) resistances, ±5% tolerance.Fault impedance> 1 MΩ.Max voltage30 Vdc.Response time500 µs.Frequency response1 kHz maximum.IsolationTest VoltageIn/Out 1.5 kV; In/Supply 1.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperatureTemperature limits –40 to +70 °C.Storage temperatureTemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 135 g.ConnectionBy polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.CertificationsEMC: D5000/D6000 EAC EMC Declaration of Conformity (Eurasian Community, ЕАЭС N RU Д-IT.PA08.B.82326/24, CONTROL, 2024-09-26)SIL: TUV IT 25 SIL 0634 SIL Certificate Summary (International, TUV IT 25 SIL 0634, TUV_SUD, 2025-09-19)Declarations of ConformityEU Declaration of Conformity for D6000 seriesDeclaration of Conformity G3 complianceCharacteristics / Technical SpecificationsProduct: D6038DBType: Switch/Proximity Detector RepeaterChannels: 2SIL Level: 3Input: Switches or proximity detectorsOutput: SPST solid-state relaysIsolation: Three port (Input/Output/Supply)Mounting: DIN-Rail 35 mmDimensions: 12.5 x 123 x 120 mmWeight: 135 gOperating temperature: –40 to +70 °C
