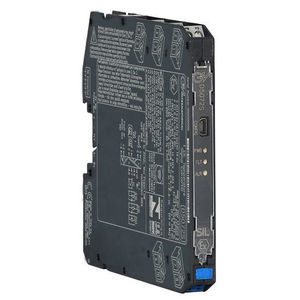

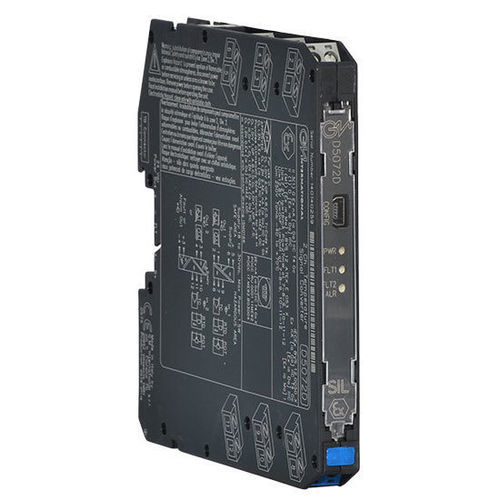

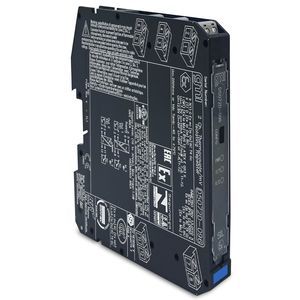

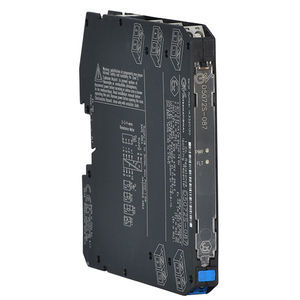

Temperature regulator signal converter D5072D

DIN railfor RTD sensorsmulti-function

The D5072D multifunction temperature converter accepts a low-level DC signal from millivolt, thermocouple, or 2-3-4 wire resistance/RTD or transmitting potentiometer sensor, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load, suitable for applications requiring SIL 2 level in safety-related systems for high-risk industries. Output signal can be direct or reverse. Modbus RTU RS-485 output is available on Bus connector. Cold junction compensation can be programmed as Internal: provided by an internal PT1000 sensor; Fixed: to a user-customizable temperature value; External remote: ext. RTD placed away, on a support terminal board; External local: ext. RTD placed close to the module terminal block; Other: connecting compensation RTD to one of the two ch. For D5072D module: duplicator function provides two independent outputs from one single input. Output function can be configured as: Adder, subtractor, low/high selector. Modules are provided with alarm function, which is available via photoMOS output. - SIL 2 / SC 3 - Input from Zone 0/Div. 1 - Installation in Zone 2/Div. 2 - mV, TC, 2/3/4wire res./RTD or potentiometer input - Duplication/inversion/scaling/custom output - Selectable CJC: internal PT1000, external RTD or fixed - Burnout/internal/cjc/in sensor fault monitor - Alarm output with user-settable trip points - Modbus RTU RS-485 for monitor & configuration - Fully programmable operating parameters - High Accuracy, µP controlled A/D converter - Three port isolation, Input/Output/Supply - High Density, two channels per unit Technical Specifications Supply - Voltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected - Current Consumption: 50 mA @ 24 Vdc with 20 mA out, typical. - Power Dissipation: 1.0 W @ 24 Vdc with 20 mA out, typical. Input - Type: Millivolt, thermocouple, 2-3-4 wire RTD or 3 wire transmitting potentiometer. Refer to Instruction Manual for more details. - Integration time: from 50 ms to 500 ms. - Input range: ±500 mV (TC/mV), 0-4 kΩ (RTD/res), up to 10 kΩ (pot). - Thermocouple reference junction compensation: programmable: internal Pt1000, fixed, external, or remote. Output - Type: Fully customizable 0/4 to 20 mA, on max. 300 Ω load source mode, current limited @ 24 mA. Refer to Instruction Manual for more details. - Transfer characteristic: linear, direct or reverse on all input sensors. Modbus interface - Type: Modbus RTU RS-485 up to 115.2 kbps for monitor/configuration/control. Input performance - Ref. Conditions: 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature, slow integration mode, 3/4 wires configuration for RTD. - Calibration and linearity accuracy: refer to Instruction Manual. - Temp. influence: refer to Instruction Manual. - Ref. junction compensation accuracy: ≤ ±3 °C (internal CJC), ≤ ±1.5°C (external local CJC), according to RTD (external remote CJC). Refer to Instruction Manual. Output performance - Ref. Conditions: 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature, slow integration mode, 3/4 wires configuration for RTD. - Calibration accuracy: ≤ ± 10 µA - Linearity error: ≤ ± 10 µA. - Temp. influence: ≤ ± 2 µA/°C Isolation - Test Voltage: I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V. Environmental conditions - Operating temperature: temperature limits –40 to +70 ° - Storage temperature: temperature limits –45 to +80 °C. Safety description - Equipment: Associated apparatus and non-sparking electrical equipment. - Safety parameters: Uo = 7.2 V, Io = 16 mA, Po = 27 mW, Ui = 12.8 V, Ci = 0 nF, Li = 0 nH at terminals 7-8-9, 10-11-12. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C. Mounting - Type: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. - Weight: about 135 g - Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). - Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm. - Status: ACTIVE - Channels: 2
