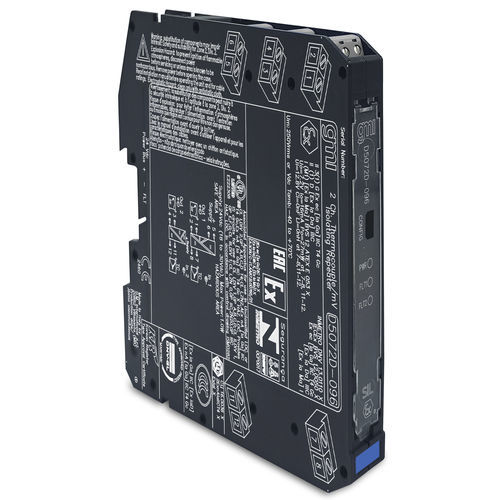

Current repeater D5072S-096

DIN rail

I.S. SIL2 Thermocouple/mV RepeaterThe Thermocouple/mV Repeater D5072-096 accepts a low level dc signal from millivolt or thermocouple sensor, located in Hazardous Area, and repeats, with isolation, the signal to Safe Area, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. For D5072D-096 module: duplicator function provides two independent outputs from one single input.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2mV or thermocouple inputOutput duplicationFully programmable operating parametersHigh Accuracy, µP controlled A/D converterThree port isolation, Input/Output/SupplyHigh Density, two channels per unitTechnical Specifications:Supply: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected; Current Consumption: 30 mA @ 24 Vdc, typical; Power Dissipation: 0.6 W @ 24 Vdc, typical.Input: Millivolt or any type of thermocouple within Input Range; Integration time: 75 ms (fast), 375 ms (slow), user selectable; Input range: -10 to +100 mV; Thermocouple burnout current: ≤ 50 µA.Output: Millivolt; Transfer characteristic: linear; Response time: ≤ 20 ms (10 to 90 % step); Output range: -10 to +100 mV.Fault: Output reflects burnout/internal fault condition via highscale (+110 mV) value forcing. Fault condition is also signaled via BUS and red LED on front panel.Input performance: Ref. Conditions: 24 V supply, 23 ± 1 °C ambient temperature, slow integration mode; Calibration and linearity accuracy: ≤ ± 10 µV; Temp. influence: ≤ ± 3 µV/°C, typical.Output performance: Ref. Conditions: 24 V supply, 23 ± 1 °C ambient temperature, slow integration mode; Calibration and linearity accuracy: ≤ ± 10 µA; Temp. influence: ≤ ± 3 µV/°C, typical.Isolation: Test Voltage: I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditions: Operating temperature: –40 to +70 °C; Storage temperature: –45 to +80 °C.Safety description: Equipment: Associated apparatus and non-sparking electrical equipment; Safety parameters: Uo = 7.2 V, Io = 23 mA, Po = 40 mW, Ui = 12.8 V, Ci = 0 nF, Li = 0 nH at terminals 7-8-9-10.Mounting: DIN-Rail 35 mm, with or without Power Bus; Weight: about 130 g; Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG); Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm.Channels: 1Status: ACTIVE
