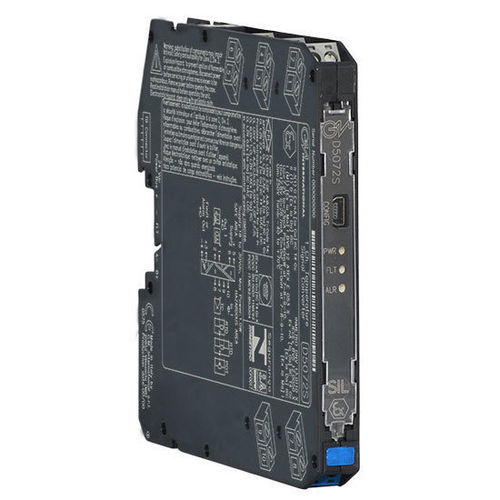

Temperature regulator signal converter D5072S

DIN railSIL 3for RTD sensors

I.S. SIL2 Multifunction Temperature ConverterThe Multifunction Temperature Converter D5072 accepts a low level dc signal from millivolt, thermocouple or 2-3-4 wire resistance/RTD or transmitting potentiometer sensor, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. Output signal can be direct or reverse. Modbus RTU RS-485 output is available on Bus connector. Cold junction compensation can be programmed as Internal: provided by an internal PT1000 sensor; Fixed: to a user-customizable temperature value; External remote: ext. RTD placed away, on a support terminal board; External local: ext. RTD placed close to the module terminal block; Other: connecting compensation RTD to one of the two ch. For D5072D module: duplicator function provides two independent outputs from one single input. Output function can be configured as: Adder, subtractor, low/high selector. Modules are provided with alarm function, which is available via photoMOS output.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2mV, TC, 2/3/4wire res./RTD or potentiometer inputDuplication/inversion/scaling/custom outputSelectable CJC: internal PT1000, external RTD or fixedBurnout/internal/cjc/in sensor fault monitorAlarm output with user-settable trip pointsModbus RTU RS-485 for monitor & configurationFully programmable operating parametersHigh Accuracy, µP controlled A/D converterThree port isolation, Input/Output/SupplyHigh Density, two channels per unitSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption42 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation0.9 W @ 24 Vdc with 20 mA out, typical.InputTypeMillivolt, thermocouple, 2-3-4 wire RTD or 3 wire transmitting potentiometer. Refer to Instruction Manual for more details.Integration timefrom 50 ms to 500 ms.Input range±500 mV (TC/mV), 0-4 kΩ (RTD/res), up to 10 kΩ (pot).Thermocouple reference junction compensationprogrammable: internal Pt1000, fixed, external, or remote.OutputTypeFully customizable 0/4 to 20 mA, on max. 300 Ω load source mode, current limited @ 24 mA. Refer to Instruction Manual for more details.Transfer characteristiclinear, direct or reverse on all input sensors.Modbus interfaceTypeModbus RTU RS-485 up to 115.2 kbps for monitor/configuration/control.Input performanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature, slow integration mode, 3/4 wires configuration for RTD.Calibration and linearity accuracyrefer to Instruction Manual.Temp. influencerefer to Instruction Manual.Ref. junction compensation accuracy≤ ±3 °C (internal CJC), ≤ ±1.5°C (external local CJC), according to RTD (external remote CJC). Refer to Instruction Manual.Output performanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature, slow integration mode, 3/4 wires configuration for RTD.Calibration accuracy≤ ± 10 µALinearity error≤ ± 10 µA.Temp. influence≤ ± 2 µA/°CIsolationTest VoltageI.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 7.2 V, Io = 23 mA, Po = 40 mW, Ui = 12.8 V, Ci = 0 nF, Li = 0 nH at terminals 7-8-9-10.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 130 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1Technical Specifications / Features:SIL 2 / SC 3 certifiedInput: mV, TC, 2/3/4 wire RTD, potentiometerOutput: 0/4 to 20 mA, customizableModbus RTU RS-485 interfaceHigh accuracy, µP controlled A/D converterThree port isolationOperating temperature: –40 to +70 °CDIN-Rail mountingDimensions: 12.5 x 123 x 120 mmWeight: about 130 g
