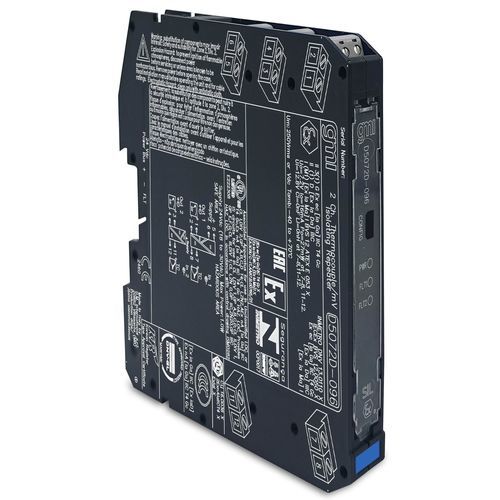

DIN rail repeater D5072D-096

I.S. SIL2 Thermocouple/mV RepeaterThe Thermocouple/mV Repeater D5072-096 accepts a low level dc signal from millivolt or thermocouple sensor, located in Hazardous Area, and repeats, with isolation, the signal to Safe Area, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. For D5072D-096 module: duplicator function provides two independent outputs from one single input.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2mV or thermocouple inputOutput duplicationFully programmable operating parametersHigh Accuracy, µP controlled A/D converterThree port isolation, Input/Output/SupplyHigh Density, two channels per unitSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption35 mA @ 24 Vdc, typical.Power Dissipation0.85 W @ 24 Vdc, typical.InputTypeMillivolt or any type of thermocouple within Input Range.Integration time75 ms (fast), 375 ms (slow), user selectable.Input range-10 to +100 mV.Thermocouple burnout current≤ 50 µA.OutputTypeMillivolt.Transfer characteristiclinear.Response time≤ 20 ms (10 to 90 % step).Output range-10 to +100 mV.FaultTypeOutput reflects burnout/internal fault condition via highscale (+110 mV) value forcing. Fault condition is also signaled via BUS and red LED on front panel.Input performanceRef. Conditions24 V supply, 23 ± 1 °C ambient temperature, slow integration mode.Calibration and linearity accuracy≤ ± 10 µV.Temp. influence≤ ± 3 µV/°C, typical.Output performanceRef. Conditions24 V supply, 23 ± 1 °C ambient temperature, slow integration mode.Calibration and linearity accuracy≤ ± 10 µATemp. influence≤ ± 3 µV/°C, typical.IsolationTest VoltageI.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 7.2 V, Io = 16 mA, Po = 27 mW, Ui = 12.8 V, Ci = 0 nF, Li = 0 nH at terminals 7-8-9, 10-11-12. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus.Weightabout 135 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 2Technical Specifications / Features:SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 2mV or thermocouple inputOutput duplicationFully programmable operating parametersHigh Accuracy, µP controlled A/D converterThree port isolation, Input/Output/SupplyHigh Density, two channels per unitVoltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption: 35 mA @ 24 Vdc, typicalPower Dissipation: 0.85 W @ 24 Vdc, typicalInput range: -10 to +100 mVOutput range: -10 to +100 mVOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting: DIN-Rail 35 mmWeight: about 135 gDimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm
