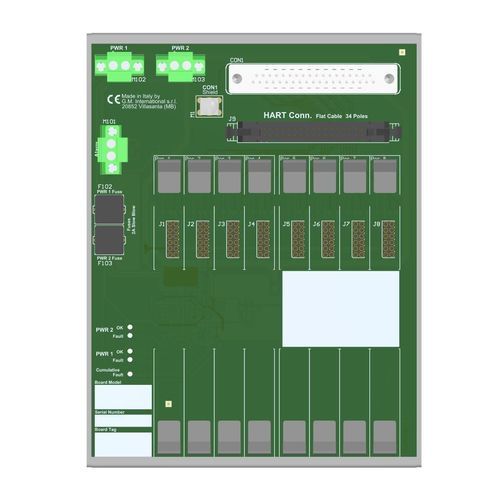

Plug-in terminal block TBE-D5008-GMI-001

relaypower

This Termination Board with Enclosure (TBE) provides direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply. - Universal board interfaces - Connection to external GMI HART Mux 5700 - 8 positions Termination Board for up to 16 channels - Lower cables installation and maintenance costs - Power supplies fault monitoring - Mounting hardware provided for single DIN Rail mounting kit Status: ACTIVE Channels: 8 or 16 Technical Specifications / Features: - Number of positions: 8 - Maximum number of channels: 16 - Supply voltage: 24 Vdc nominal (20 to 30 Vdc), reverse polarity protected, redundant supply - Max allowed current: 1A - Protection fuse: 2A time lag - Fault detection: On-board diagnostics, solid-state relay, LED indication - I/O Card Interface: SUB-D 37 poles male connector - HART Mux Interface: 34-poles receptacle connector - Operating temperature: –40 to +70 °C - Storage temperature: –45 to +80 °C - Max altitude: 2000 m a.s.l. - Mounting: DIN-rail 35 mm - Weight: about 450 g (excluding modules) - Dimensions: 140 x 180 x 154 mm (W x D x H) - Location: Safe Area installation
