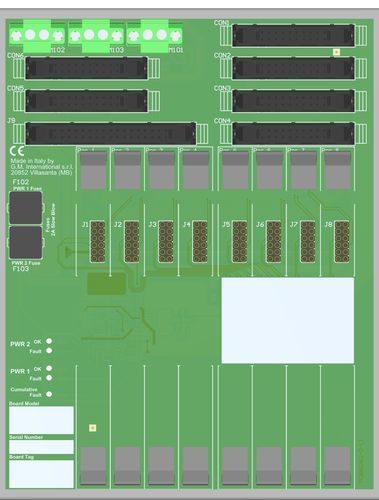

Plug-in terminal block TBE-D5008-MOD-001

relaypowerplastic

This Termination Board with Enclosure (TBE) provides terminals for the direct connection between the I/O Card of the system and D5000 / D6000 Series modules. The Intrinsically Safe protection and signal isolation between Safe and Hazardous Area is provided by D5000 Series Associated Apparatus. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply.Modicon M580 Safety AI & DO board interface8 positions Termination Board for up to 16 channelsLower cables installation and maintenance costsPower supplies fault monitoringMounting hardware provided for single DIN Rail mounting kitStatus: ACTIVEChannels: 8 or 16GeneralNumber of positions8Maximum number of channels16SupplyVoltage24 Vdc nom (20 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR diodes to mix supply voltages.Max allowed current consumption1.5 A (as total supply).Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Protection fuse2 A time lag.Fault detectionTypeThe on-board diagnostic monitors both power supplies integrity and the module cumulative fault. Any malfunction is reported by deactivating a solid-state relay and activating the corresponding LEDs.Alarm is issued if1) Power supply 1 or 2 < 17 Vdc or 2) Power supply 1 or 2 > 33 Vdc or 3) Module cumulative fault ON.Alarm is removed if1) 20 Vdc < Power supply 1 and 2 < 30 Vdc and 2) No module cumulative fault.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm², screw fix.Output rating100 mA 35 V (≤ 1 V voltage drop).I/O Card InterfaceConnection4 x 20-poles receptacle connector (require female mating connector) AI, 2 x 20-poles receptacle connector (require female mating connector) DO.CableTBD.HART Mux InterfaceConnection1 x 34-poles receptacle connector (require female mating connector).Cableflat cable CABF032Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Max altitude2000 m a.s.l.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeHardware included for mounting on single DIN-rail 35 mm.Weightabout 500 g, excluding modules with plastic clips.Locationinstallation in Safe Area.DimensionsWidth 140 mm, Depth 180 mm, Height 154 mm.Technical Specifications / Features:Number of positions: 8Maximum number of channels: 16Supply voltage: 24 Vdc nominal (20 to 30 Vdc), reverse polarity protected, redundant power supplyMax allowed current consumption: 1.5 AProtection fuse: 2 A time lagFault detection: On-board diagnostics for power supplies and module faults, with LED indicationOutput rating: 100 mA 35 V (≤ 1 V voltage drop)I/O Card Interface: 4 x 20-poles (AI), 2 x 20-poles (DO) receptacle connectorsHART Mux Interface: 1 x 34-poles receptacle connectorOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMax altitude: 2000 m a.s.l.Mounting: DIN-rail 35 mm, hardware includedWeight: about 500 gLocation: Safe Area installationDimensions: 140 x 180 x 154 mm (W x D x H)
